3.4.1. Generate Cold Coordinate Temperature Maps

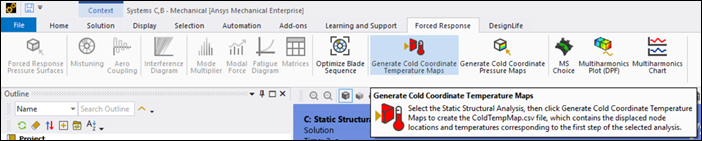

Select the Static Structural analysis and in the Forced Response ribbon and click Generate Cold Coordinate Temperature Maps.

This action creates the ColdTempMap.csv file in the selected static structural solver directory, which contains the displaced node locations (X,Y and Z) and temperatures (equivalent to the user-defined result BFE) corresponding to the first step of the selected analysis.
