3.4.2. Generate Cold Coordinate Pressure Maps

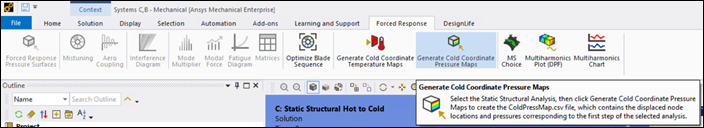

Select the Static Structural analysis and in the Forced Response ribbon and click Generate Cold Coordinate Pressure Maps.

This action creates the ColdPressMap.csv file in the selected static structural solver directory, which contains the displaced node locations (X,Y and Z) and pressures corresponding to the first step of the selected analysis.

Note that two command snippets are added to the Static Structural system:

  • A pre-processing command to extract the sfelist file, which triggers the solve of the static structural system.

  • A post-processing command that processes the sfelist output to generate the corresponding ColdPressMap.csv, which triggers the Execute Post command of the static structural system.
