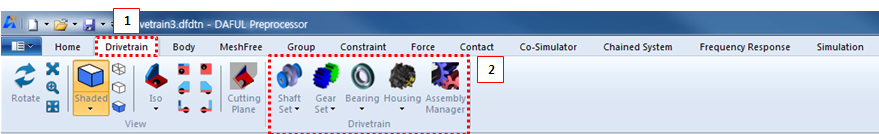

Figure 14.5: Steps to create a drivetrain entity
| Step | Operation |
| 1st step | Select on the ribbon menu, as shown in the figure above. |
| 2nd step | Select one of the drivetrain entities, as shown in the figure above. |
| 3rd step | Follow the prescribed creation steps for each entity, as shown in the table below. |
As shown in the table above, a Drivetrain entity can be created through several steps. The creation steps for each entity are shown in the table below. The physical definition of each step can be found in the creation page of each Drivetrain entity.
Figure 14.6: Creation methods for Drivetrain entities
| Type | Creation method |
| Shaft Set | Simple > Position > Rotate Axis > Properties |
| FE > Name (Detail properties are set in designer of Shaft Set) | |
| EasyFlex > Name (Detail properties are set in designer of Shaft Set) | |
| Gear Set | External > Creation method > Gear Type (Spur, Helical)> Hand of Helix (only helical) > Number of gear > Specifications of Gear |
| Internal > Creation method > Gear Type (Spur, Helical) > Hand of Helix (only helical) > Number of gear > Specifications | |
| Planetary > Creation method > Gear Type (Spur, Helical) > Hand of Helix (only helical) > Number of gear > Specifications of Gear | |
| Rack and Pinion > Creation method > Gear Type (Spur, Helical) > Hand of Helix (only helical) > Specification of Gear > Specifications of Rack Bar | |
| Custom > Create by using default value | |
| Bearings | Rolling > Creation method > Reference bearing (existing bearing) > Stiffness > Bearing Type > Damping ratio > Bearing dimension > Geometry value |
| Sliding > Creation method > Reference bearing (existing bearing) > Type > Arc angle > Length > Thickness > Inner radius | |
| Housing | FE Name (Detail properties are set in designer of Shaft Set) |
| EasyFlex > Name (Detail properties are set in designer of Shaft Set) |
