Bearing is modeled as revolute joint or bushing force. In order to calculate the loss of the bearings, selected a rotational joint or bushing force. And then input the friction coefficient and radius of the bearing. Bearing Friction Loss does not appear to "Contour".

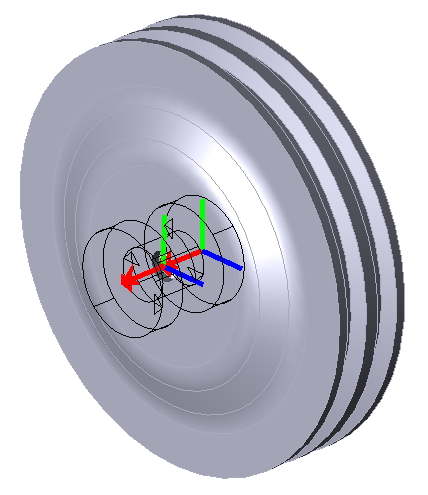

Figure 12.112: Description of Bearing Friction Loss
| Name | Description |
| Bearing Friction Loss |
Friction energy between the bearing and shaft
|
Friction coefficient and Bearing Diameter is user input. The angular velocity and axial load is calculated by the selected entity (Bearing).
