12.4.8.4. Slip Loss

Slip loss is calculated by the contact between the segment and path. Slip loss is summation of the loss value at each contact point.

Figure 12.110: Description of Slip Loss

NameDescription
Slip Loss

The loss due to slip between pulley and belt

  • Description of Slip Loss

Description of Slip Loss : Normal force

Description of Slip Loss : Friction coefficient between Segments and Path

Description of Slip Loss : Segment velocity of tangential direction(mm/s)

Description of Slip Loss : Path velocity of tangential direction(mm/s)

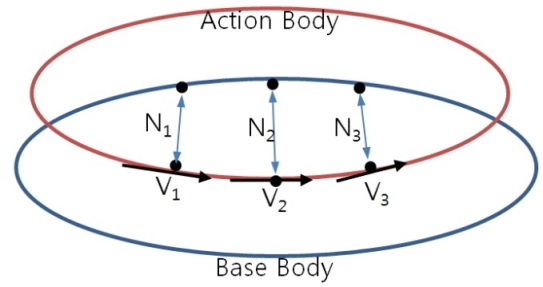

Figure 12.111: Slip Loss

Slip Loss


=3 (number of contact point)

Where,
