12.4.8.2. Bending Loss

Figure 12.106: Description of Bending Loss

NameDescription
Bending Loss

Hysteresis loss caused by repeated bending deformation.

  • Z axis bending Description of Bending Loss

  • Y axis (Secondary) bending Description of Bending Loss

Description of Bending Loss Description of Bending Loss  : Rotational damping coefficients for y, z direction.

Description of Bending Loss : rotational displacement of the belt elements of the i-th (rad)

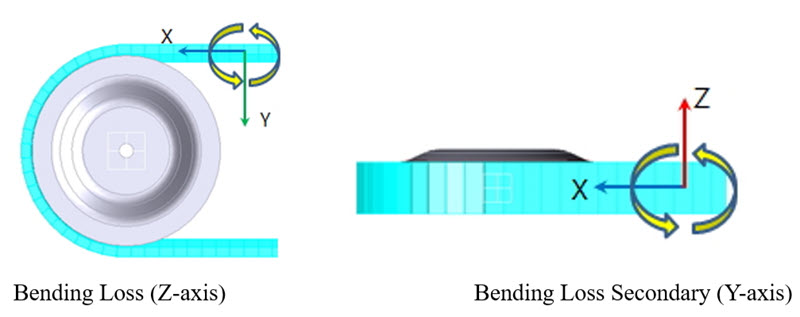

Figure 12.107: Bending Loss

Bending Loss


The Bending Loss axis is rotational axis (Z-axis) of the segment.
