12.4.8.1. Tension

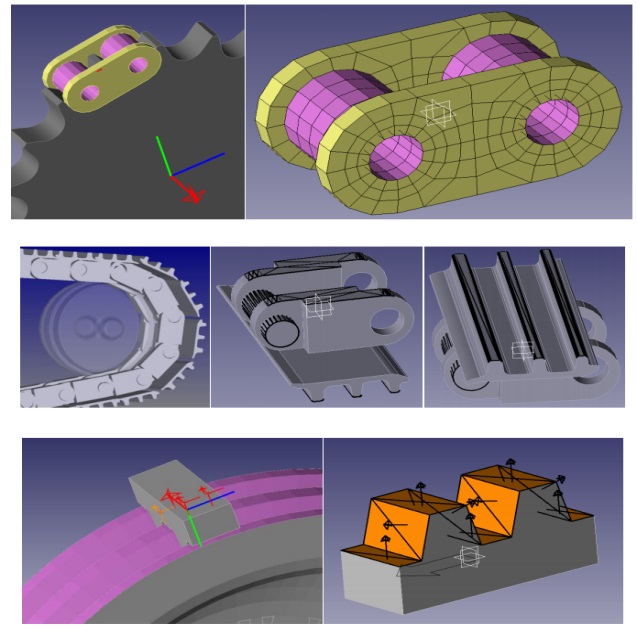

Figure 12.104: Description of Tension

NameDescription
Tension

Description of Tension  applied busing force on action

Description of Tension

Axial force of connecting forces applied on the i segment of the Links (Chain). The force can be calculated as follows.

Description of Tension

The connecting forces may be defined in the "Connection of Segment and Segment". User must select one of the forces for the tension request. The selected force can be a bushing.


Figure 12.105: Coordinate system

Coordinate system
