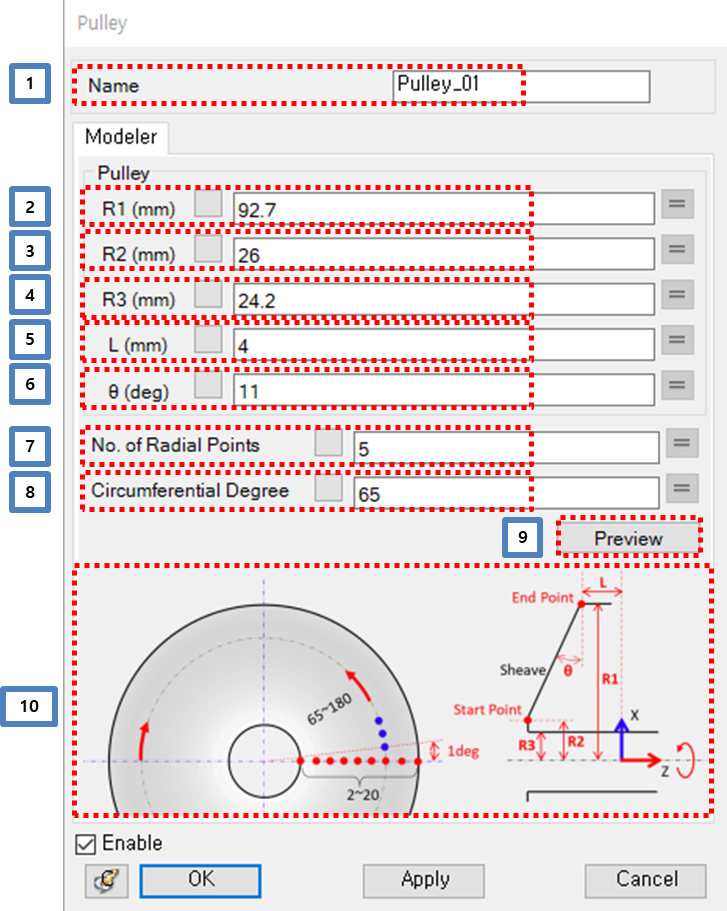

Figure 12.37: Modeler tab in the Pulley entity property dialog
| Parameter | Symbol | Description | Dimension (Range) |
| 1. Name | N/A | Name of pulley entity. | N/A |
| 2. R1 (mm) | N/A | Distance from "End Point" to rotational axis of pulley. |
Length (Real>0.0) |
| 3. R2 (mm) | N/A | Distance from "Start Point" to rotational axis of pulley. |
Length (Real>0.0) |
| 4. R3 (mm) | N/A | Radius of center hole of pulley. |
Length (Real>0.0) |
| 5. L (mm) | N/A | Distance from "End Point" to "Symbol Position" of pulley entity. | N/A |
| 6. θ (deg) | N/A | It's sheave angle that between sheave surface and rotational plane of pulley. |
Angle (Real>0.0) |
| 7. No. of Radial Points | N/A | The number of points that divide the sheave surface with equal distance on radial direction. | Integer: 2~20 |
| 8. Circumferential Degree | N/A | The measured range of the sheave surface on circumferential direction. It's used to calculate pulley deformation ratio (circumferential). |
Angle (Real: 65~180deg) |

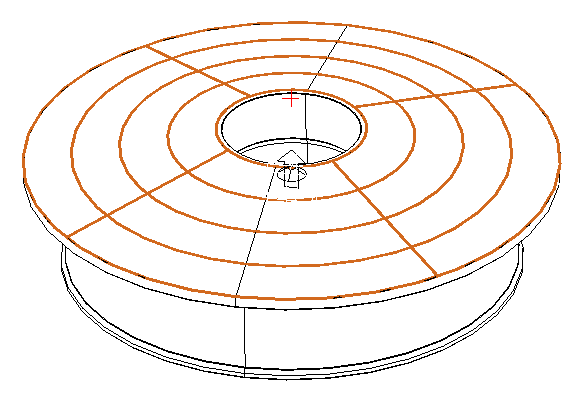

| 9. Preview | N/A | Preview shape of pulley surface. | N/A |
| 10. Pulley Dimension | N/A | Used to check the pulley dimension. | N/A |
