9.1.2. Simulation Access

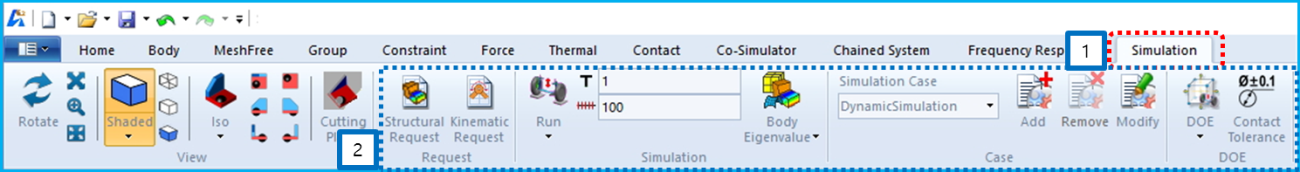

Figure 9.2: Simulation from the ribbon menu

Simulation from the ribbon menu

Figure 9.3: Steps to access Simulation

StepOperation
1st stepSelect Simulation on the ribbon menu as shown in the figure above.
2nd stepSelect one of the features in the categories as shown in the figure above. Body Eigenvalue analysis for simulation in the subsystem is run with a nodal EasyFlex body. For a nodal flexible body, Body Eigenvalue analysis must be accessed from Simulation in the mesh.
