Maxwell format - Element based

To create a Motor EM Force by using Maxwell format element-based results, all of the UNV, AMESH and ANF files are needed.

Model type and rpm are defined in this file.

Figure 6.87: Summary of information in UNV file

Two datasets must be contained in this file. The first is dataset number 164 to define the unit. The second is dataset number 2411 for the node information.

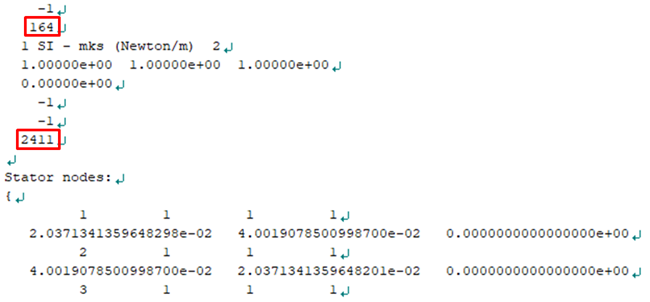

Figure 6.88: Geometry information in AMESH file

Two datasets must be contained in this file. The first is dataset number 164 to define the unit. The second is dataset number 2414 for the force information.

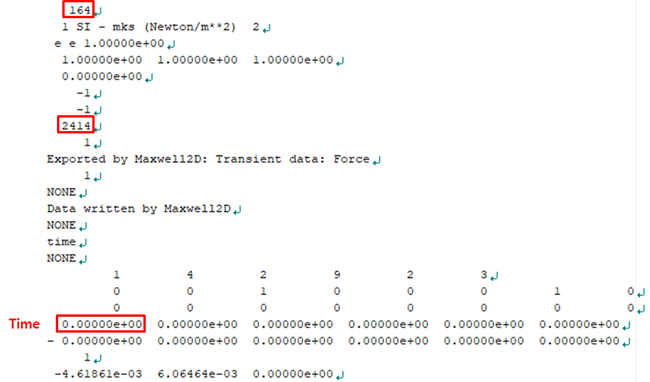

Figure 6.89: Force information in ANF file

Maxwell format - Object based

To create a Motor EM Force using Maxwell format object-based results, only the UNV file is needed.

This file should contain the position information for each tooth. This should be in the metaData block.

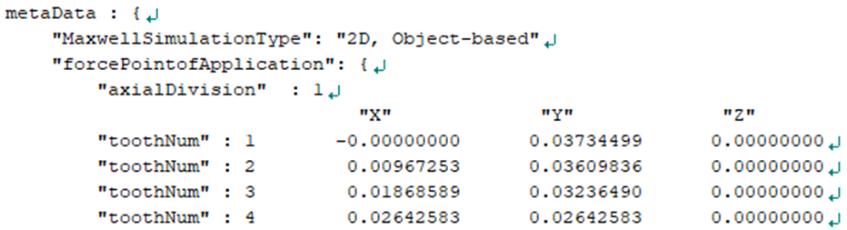

Figure 6.90: Geometry information in UNV file

This file should contain the force information for each tooth and time. This must be in the loadPointDefinition block.

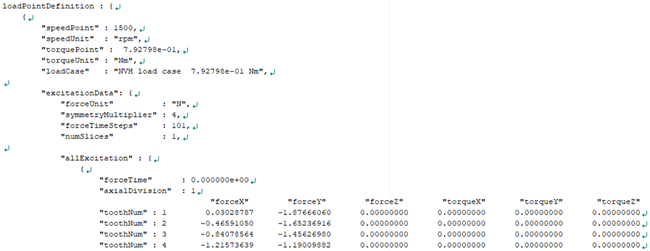

Figure 6.91: Force information in UNV file

Maxwell UNV format

To create a Motor EM Force using Maxwell UNV format, UNV files (mesh, force) are needed.

Two datasets must be contained in this file. The first is dataset number 164 to define the unit. The second is dataset number 2411 for the node information.

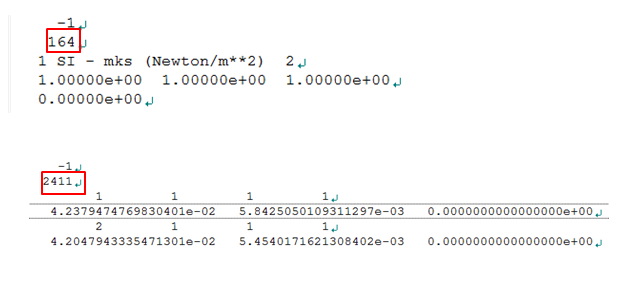

Figure 6.92: Geometry information in UNV file

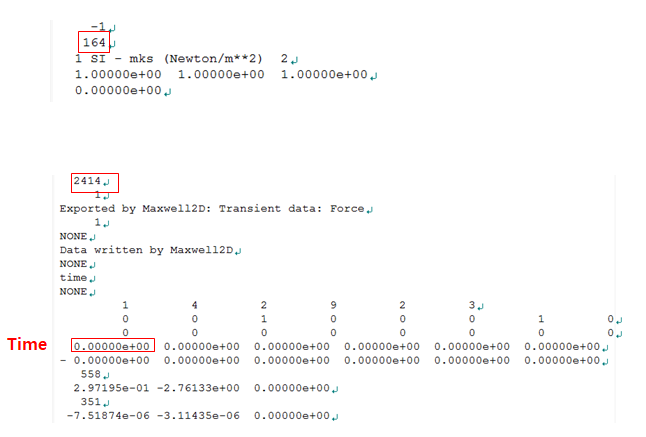

Two datasets must be contained in this file. The first is dataset number 164 to define the unit. The second is dataset number 2414 for the force information.

Figure 6.93: Force information in UNV file

JMAG UNV format

To create a Motor EM Force using JMAG UNV format, UNV files (mesh, force) are needed.

Two datasets must be contained in this file. The first is dataset number 164 to define the unit. The second is dataset number 2411 for the node information.

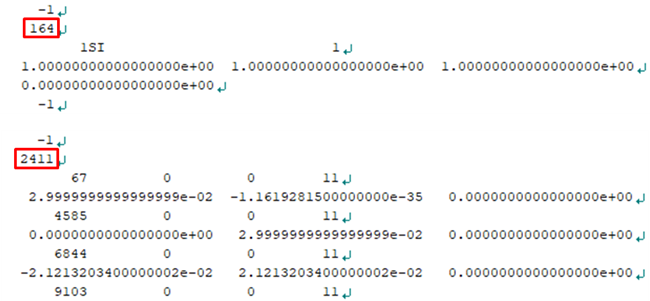

Figure 6.94: Geometry information in UNV file

Two datasets must be contained in this file. The first is dataset number 164 to define the unit. The second is dataset number 2414 for the force information.

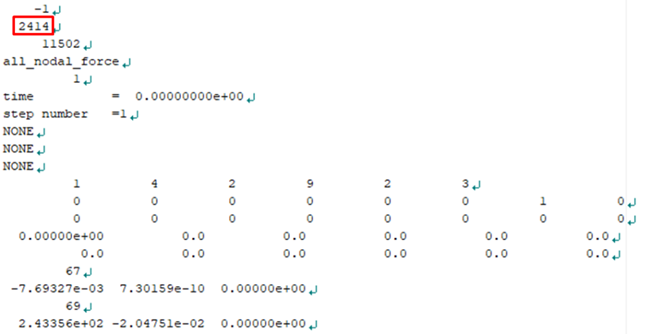

Figure 6.95: Force information in UNV file
