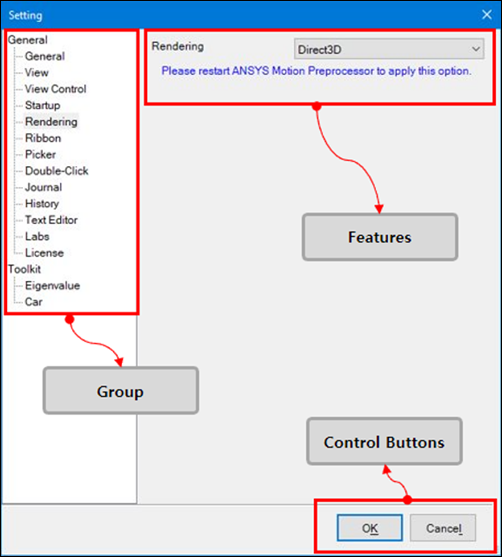

Figure 1.15: Setting dialog

The Setting dialog defines the default program values used to control the precision of the double data type, accuracy of a body mass, view point, solver type, automatic saving time, graphics accelerator settings and so on, as shown in the figure above. When a settings group is selected from the left panel, the related features are displayed in the dialog. The properties of these features are described in the table below.

Figure 1.16: Description of Settings

Group	Feature	Description

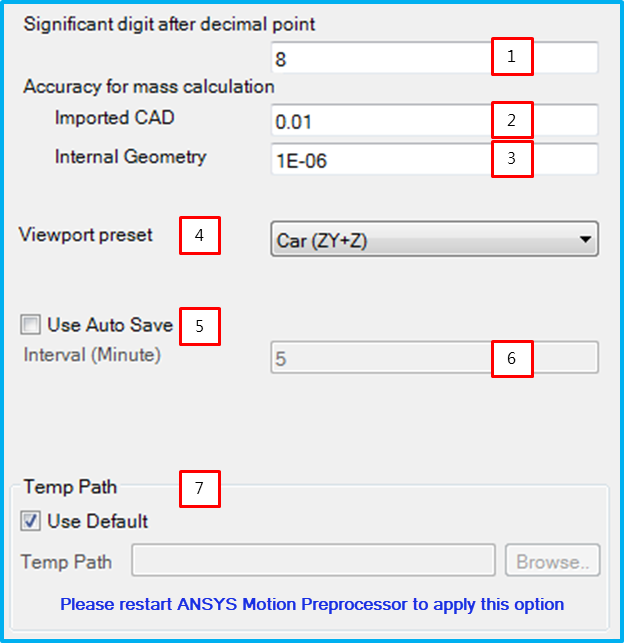

General
	1. Significant digit after decimal point	Controls the precision of a value when a string is converted into a double data type.
	2. Imported CAD	Sets the precision when CAD is imported. This has an effect on the accuracy of the mass properties of the CAD geometry. As this value increases, accuracy decreases.
	3. Internal Geometry	Set the geometry precision for inertia calculation. A lower value will achieve higher accuracy but at lower performance.
	4. Viewport preset	Sets the default viewport for the working window. You can select from Car, Standard and User defined.
	5.Use Auto Save	Determine whether to use the auto-save option. If this option is selected, the file will be saved periodically.
	6. Interval (Minute)	Sets the period for the auto-save.
	7. Temp Path	Sets a user-defined temporary path instead of using the TEMP path defined in the System Environment variables.

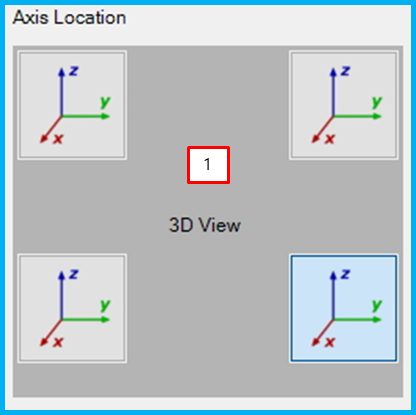

View
	1. Axis Location	Sets the axis location in the working window.

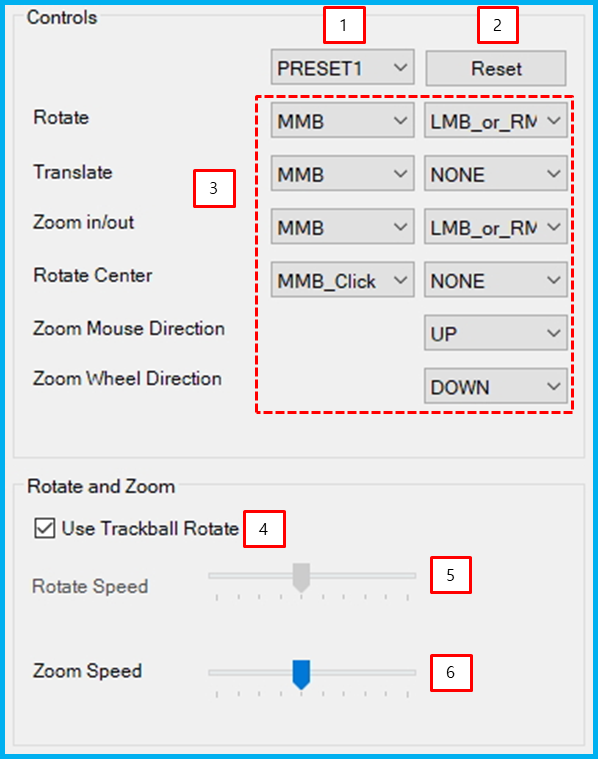

View Control
	1. PRESET	Selects a pre-defined view type.
	2. Reset	Resets to the default view.
	3. View Control	Changes the view control method.
	4. Use Trackball Rotate	Sets the rotation method. The default setting is to have the trackball run half a turn from the top to the bottom of the working window.
	5. Rotate Speed	Sets the rotation speed, If the Use Trackball Rotate option is cleared, this function is enabled.
	6. Zoom Speed	Sets the zoom speed.
Startup
	1. Use default start page	Use the default start page.
	2. Show another page	Sets a user-defined page as the start page. A website address can be defined as a start page.
	3. Number of Recently Used Files	Sets the number of recently-used files that are displayed on the start page.
	4. Close start page after work is loaded	Closes the start page when a work item is loaded from the working window.
	5. Show start page at startup	Shows the start page in the working window while the Preprocessor is starting up.
Rendering
	1. Rendering	Selects the rendering type. Depending on your graphics card and driver, you can select either OpenGL or Direct3D. If visualization has problems, they may be solved by selecting a different type.
Ribbon
	1. User ribbon path	Shows the path of template files for the ribbon menu.
	2. Browse…	Set a folder where the template files for the ribbon menus are located.
Picker
	1. Complete creation process automatically	Completes the entity creation operation automatically.
	2. Use dockable windows	Sets the picker and creation dialog as the dockable windows.
Double Click
	1. Subsystem	Determines the operation when double-clicking. When double-clicking a Subsystem in the working window, either its property dialog or the subsystem file can be opened using this option.
	2. Assembled Body	Determines the operation when double-clicking. When double-clicking an Assembled Body (Rigid Body) on the working window, either its property dialog or the part file can be opened using this option.
	3. Flexible Body	Determines the operation when double-clicking. When double-clicking a FE Body in the working window, either its property dialog or the mesh file can be opened using this option.
Journal
	1. Use Journal	Creates a journal file automatically. This journal file is created at the specified path whenever the Preprocessor is started. The recording is then stopped when the Preprocessor is closed.
	2.Automatically generate a file path	Defines the journal file name or path. When this option is selected, the journal file is automatically created at the specified file path. Otherwise, if this option cleared, you must define the journal filename and path.
History
	1. Number of Undo/Redo Steps	Defines the maximum number of allowable steps for the Undo and Redo operations.
Co-Simulation
	1. Solver	Selects the solver version. The solver is used when the Preprocessor performs a co-simulation.
Eigenvalue
	1. Maximum Number of Normal Mode	Sets the maximum number of solved normal modes during eigenvalue analysis.
	2. Use Bound Frequency	Determines whether the solved frequency is bounded or not.
	3. Lower Bound Frequency (Hz)	Set the lower bound frequency.
	4. Upper Bound Frequency (Hz)	Set the upper bound frequency.

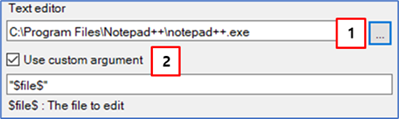

Text Editor
	1. Text editor path	Sets the text editor path.
	2. Use custom arguement	Sets custom arguments to be passed to the text editor.
