12.2.12. General Roller Properties for Links (Track)

Figure 12.29: Shape of General Roller

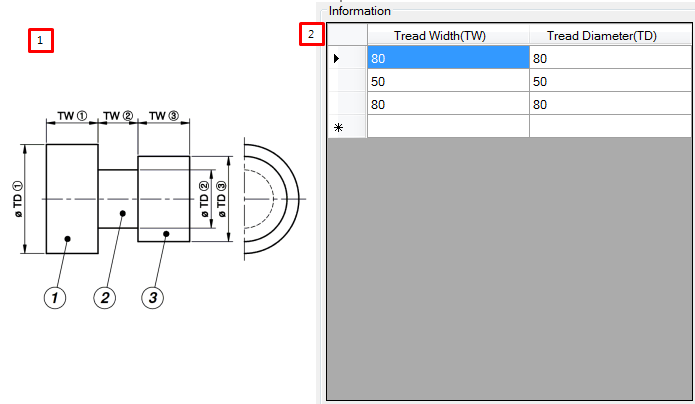

Figure 12.30: Profile tab in the General Roller property dialog

Figure 12.31: Profile tab in the General Roller property dialog

Parameter

Symbol

Description

Dimension (Range)

1. Dimension

N/A

This is a figure showing the supplied dimension parameters (see below).

N/A

2. Information

Used to set the shape data. The shape data is constructed using values for Tread Width (TW) and Tread Diameter (TD). The sequence refers to the dimension figure (above).

Length

(Real>0.0)
