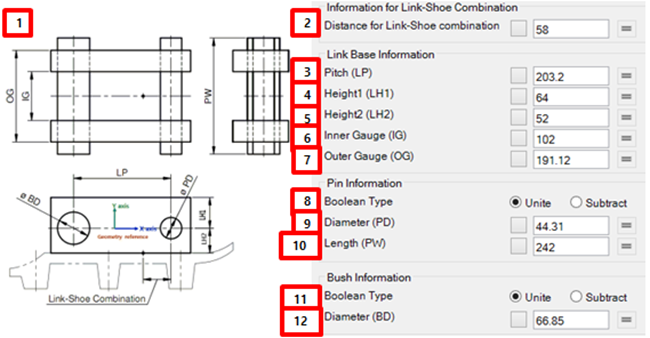

Figure 12.53: Profile tab in the Simple Link property dialog
| Parameter | Symbol | Description | Dimension (Range) |
| 1. Dimension | N/A | This is figure to help understanding what to mean parameter. | N/A |
| 2. Distance for link-shoe combination | N/A | This is signature for combination link with shoe. After creation link and shoe, user must move link or shoe as different value. | Length |
| 3. Pitch | LP | Use to set the pitch of link. The pitch of link is used the length of segment. |
Length (Real>0.0) |
| 4. Height1 | LH1 | Use to set the height1 of link. The height1 of link is used the height1 of Segment. |
Length (Real>0.0) |
| 5. Height2 | LH2 | Use to set the height2 of link. The height2 of link is used the height2 of Segment. |
Length (Real>0.0) |
| 6. Inner gauge | IG | Use to set the inner gauge. |
Length (Real>0.0) |
| 7. Outer gauge | OG | Use to set the outer gauge. |
Length (Real>0.0) |
| 8. Boolean type | N/A | Use to create pin`s shaft. When "Unite" is selected, pin`s shaft is united on link. When "Subtract" is selected, pin`s shaft subtracted from link. | N/A |
| 9. Diameter | PD | Use to set the diameter of pin. |
Length (Real>0.0) |
| 10. Length | PW | Use to set the length of pin |
Length (Real>0.0) |
| 11. Boolean type | N/A | Use to create bush`s shaft. When "Unite" is selected, bush`s shaft is united on link. When "Subtract" is selected, bush`s shaft subtracted from link. | N/A |
| 12. Diameter | BD | Use to set the diameter of bush. |
Length (Real>0.0) |
