12.3.9. Creation of Links and Shoes for Links (Track)

Links and Shoes can be created in a subsystem and part file that has the Segment property.

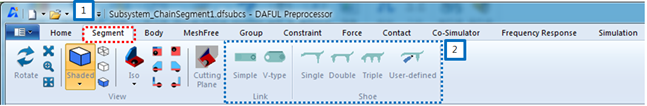

Figure 12.49: Link and Shoe entities from the ribbon menu

Link and Shoe entities from the ribbon menu

Figure 12.50: Steps to create Link or Shoe entities

StepDescription
1st stepSelect Segment on the ribbon menu
2nd stepSelect one of Link or Shoe entities
