From the Screw Joint property dialog, the connector parameters can be modified and the pitch defined as shown in the figure and table below. The definitions of the other parameters can be found under Constraint Entity Connectors.

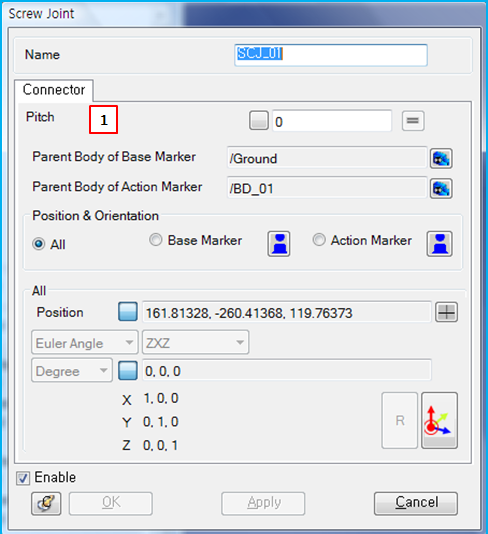

Figure 5.61: Description of the Screw Joint property dialog
| Parameter | Symbol | Description | Dimension (Range) |
| 2. Pitch |
| Use to set the pitch value. This value is the distance from one peak on the screw thread to the next thread. |
Length (Real) |
