When creating a new file such as a subsystem or subsystem template, several modeling options can be defined as shown in the figure and table below.

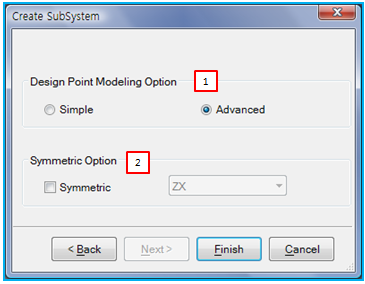

Figure 1.55: Modeling option settings
| Property | Description | |||||||||
| 1. Design Point Modeling Option |
Used to set advanced options for the design point. When the Advanced option is selected, a design variable can be used as one of the components of the design point. Suppose that a design variable is defined as X1 with a value of 10. The table below shows the possible usage in the design point.
| |||||||||
| 2. Symmetric Option | Enable symmetric modeling of sub-entities such as spline, design variable, design point, and design frame. |
These properties cannot be modified once the file has been created. You can go to the previous step by clicking , finish the file creation operation by clicking , and cancel the file creation by clicking .
