You can create a Measuring Point on a housing to measure kinematics results in this tab. The Measuring Point will make a dummy sphere to measure the housing's acceleration or other parameters.

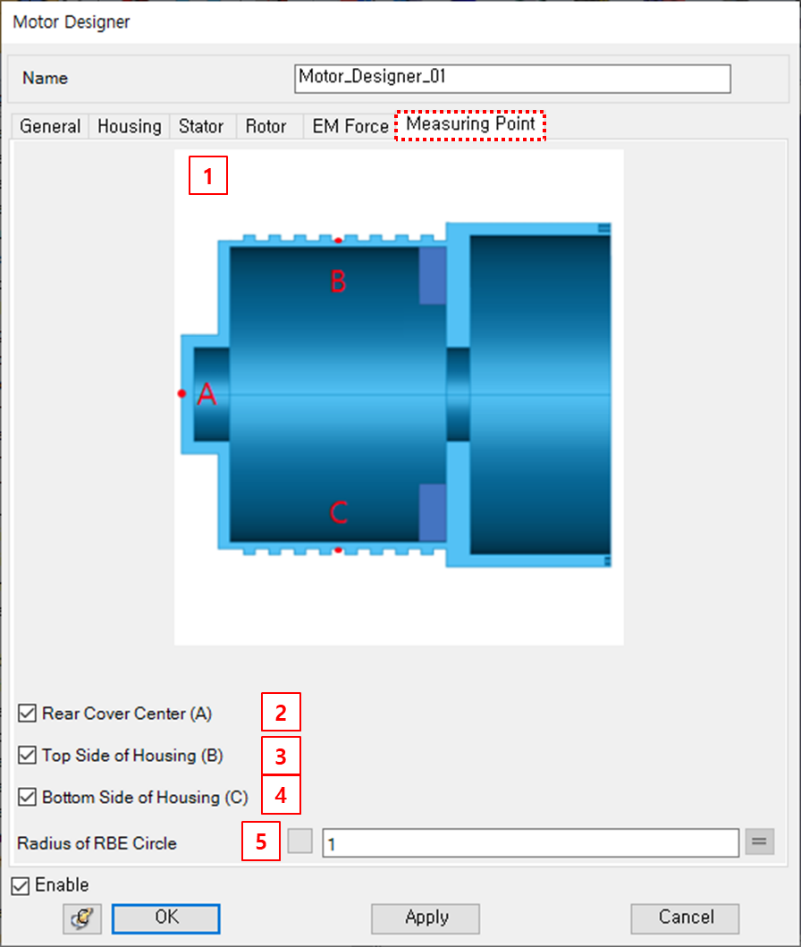

Figure 14.357: Parameters in the Measuring Point tab of Motor Designer (User Defined)
| Parameter | Description | Dimension |
| 1. Preview Window | Use to show the position of measuring points. | N/A |
| 2. Rear Cover Center | Use to set to create measuring point on rear cover center. | N/A |
| 3. Top Side of Housing | Use to set to create measuring point on top side of housing. | N/A |
| 4. Bottom Side of Housing | Use to set to create measuring point on bottom side of housing. | N/A |
| 5. Radius of RBE Circle | Use to set the radius of RBE circle. | N/A |
