As shown in the figure below, the Simulation category has several features for running a simulation. Each feature has functionality as shown in the table below.

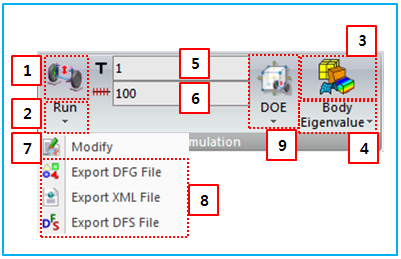

Figure 9.15: Features of the Simulation category

Figure 9.16: Features of the Simulation category

Feature	Description	Dimension (Range)
1.	Use to carry out the system analysis with the predefined simulation configuration. For more information, see Quick Run for Analysis.	N/A
2.	Use to open the sub-menu for the Modify and Export features (below).	N/A
3.	Use to carry out Body Eigenvalue analysis. For more information, see Body Eigenvalue Analysis Operation.	N/A
4.	Use to open the sub-menu for Export (below).	N/A
5.	Use to set the simulation end time.	Time (Real≥0.0)
6.	Use to set the output step, which is the number of result sets in time domain. For more information, see Simulation Configuration Properties.	N/A (Integer>0)
7. Modify	Use to open Simulation Configuration Properties. Simulation, solver and analysis parameters can be modified in the dialog.	N/A
8. Export Files	Use to Export Simulation Input Files.	N/A
9. DOE	Use to open DOE.	N/A
