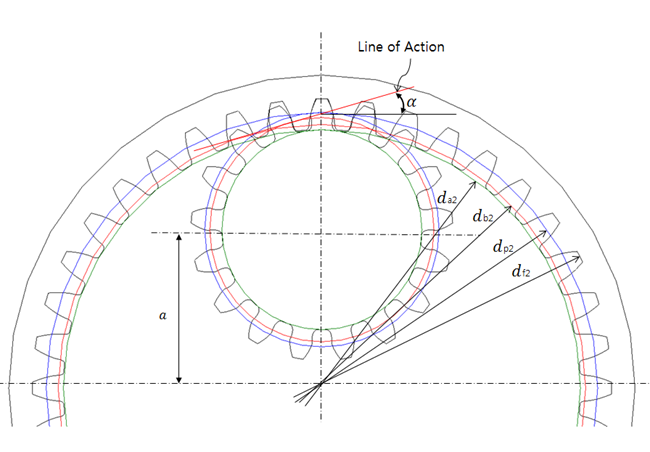

Figure 14.94: Internal gear set specifications (Involute)

Figure 14.95: Internal gear set specifications (Involute)

Parameter	Symbol	Formulation
1. Module	m	N/A
2. Pressure angle	β	N/A
3. Helix angle	α	N/A
4. Number of teeth	z	N/A
5. Profile shift coefficient	x	N/A
6. Center distance	a
7. Pitch diameter	dp	zm
8. Base diameter	db
9. Addendum	ha
10. Dedendum	hf
11. Tooth depth	h	2.25m
12. Tip diameter	da
13. Root diameter	df

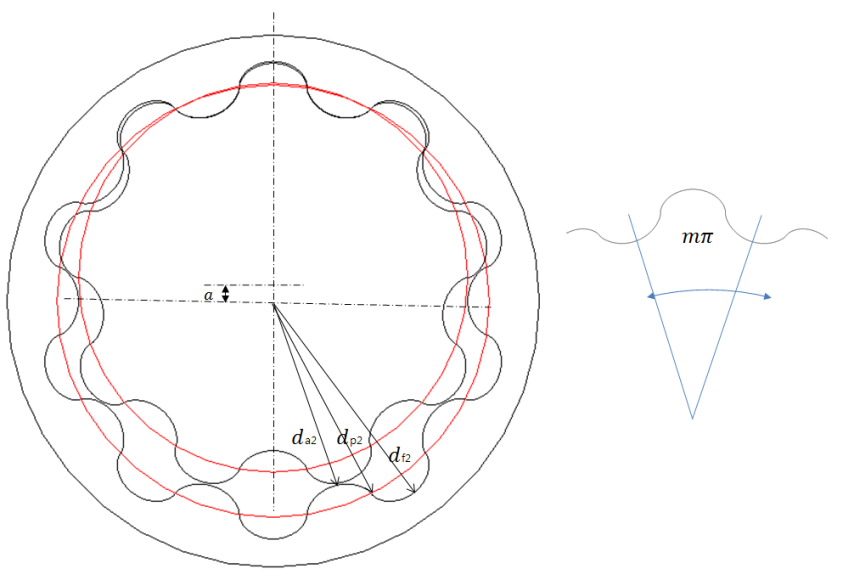

Figure 14.96: Internal gear set specifications (Cycloid)

Figure 14.97: Internal gear set specifications (Cycloid)

Parameter	Symbol	Formulation
1. Module	m	N/A
2. Helix angle	β	N/A
3. Number of teeth	z	N/A
4. Center distance	a
5. Base diameter	db	mπ
6. Tip diameter	da	N/A
7. Root diameter	df	N/A
