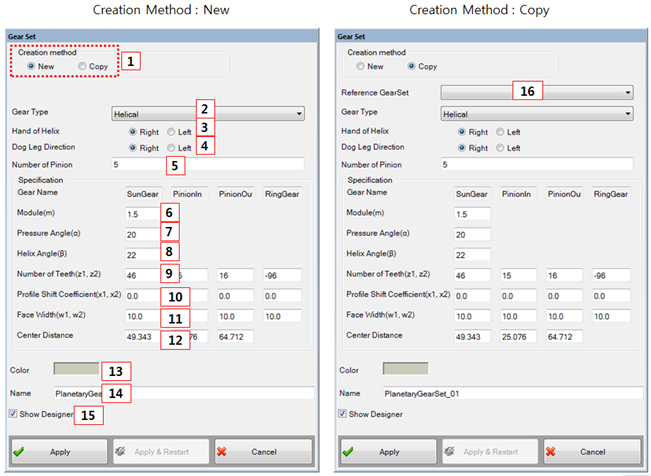

| Parameter | Description |
| 1. Creation Method | Use to set the creation type. When the "Copy" option is selected, the parameters of created gear set can be defined from the parameters of pre-defined gear set. |
| 2. Gear Type | Use to select the type of gear. When the "Helical" type is selected, the helix angle and the hand of helix can be activated. |
| 3. Hand of Helix | Use to select the hand of helix. This parameter available only for helical type. |

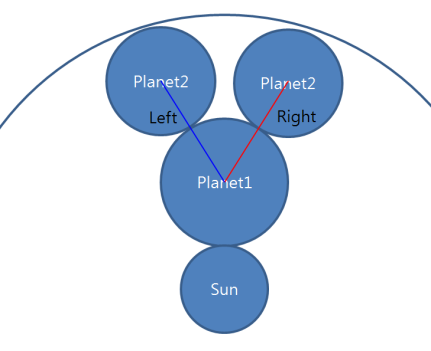

| 4. Dog Leg Direction |
Use to set the direction of the second planetary gear.
|
| 5. Number of Pinion | Use to set the number of pinions. This parameter is available for the helical type. |
| 6. Module(m) | Use to set the normal module. |
| 7. Pressure Angle(α) | Use to set the normal pressure angle. |
| 8. Helix Angle(β) | Use to set the helix angle. |
| 9. Number of teeth(z1, z2) | Use to set the number of tooth for each gear. If the gear type is the internal gear, the value must be negative. |
| 10. Profile Shift Coefficient(x1, x2) | Use to set the profile shift coefficient. |
| 11. Face Width(w1, w2) | Use to set the face width. |
| 12. Center distance | Use to set the center distance between each gear. This parameter is used only for 2D graphics in designer. |
| 13. Color | Use to set the color. |
| 14. Name | Use to set the name of the gear set. |
| 15. Show designer | Use to open the designer automatically. |
| 16. Reference Gear set | Select a gear set that has already been created. |
