Overview

Test Case

This test case reproduces a three-dimensional, unsteady, incompressible laminar flow around a cylinder inside a channel. The purpose of the test case is to validate the maximum drag and lift force coefficients and the pressure difference between the front and rear points of the cylinder.

The domain consists of a box (the channel) with an inflow at prescribed velocity, an outflow at prescribed pressure, and the lateral sides of the boundary with non-slip conditions (the channel walls). The cylinder also features a non-slip condition. The domain size and relevant quantities are shown in Figure 171. As you can see, the cylinder location is not perfectly symmetrical with respect to the channel height in the y direction. Two meshing boxes have been used to selectively refine the mesh around the cylinder and its wake (see Figure 172). For this test case, all units of measure are consistent (length = m, time = s, mass = kg, force = N, pressure = Pa).

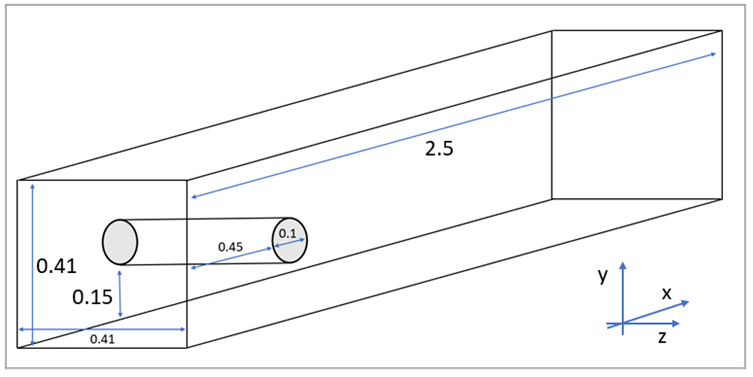

Figure 171: Problem Sketch: Domain Geometry and Main Dimensions

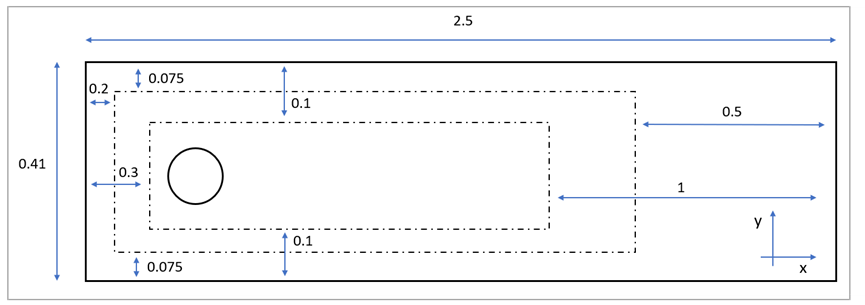

Figure 172: Meshing Boxes Layout for Mesh Refinement

Analysis Assumptions and Modeling Notes

The behavior of the flow is characterized by the Reynolds number

(24)

where is the fluid's density, is the characteristic length of the problem (the cylinder diameter), and is the dynamic viscosity of the flow. is the flow mean velocity at the channel's inlet

(25)

where is the (unsteady) velocity field in the channel's axial direction, which is imposed at the inlet (x = 0). The complete inflow velocity field relation is

(26)

where is the maximum inflow velocity in the channel's axial direction. This yields a Reynolds number .

In this study, the time interval is 0 ≤t ≤ 8. The values of drag and lift coefficients (respectively, and ) are plotted, and their maximum value ( and ) will be compared to the same values available in the reference. The nondimensional coefficients are evaluated using the following relationship:

(27)

where is the maximum of for the considered time interval and is the relative dimensional force on the cylinder surface. The drag force is the resultant force on the cylinder in the asymptotic flow direction (x direction), the lift force is the resultant force on the cylinder orthogonal to the asymptotic flow direction (y direction), and both forces are the sum of pressure and viscous forces.

As a further reference value, the pressure difference is defined, with the front and end points of the cylinder (x_a, y_a, z_a) = (0.45, 0.2, 0.205) and (x_b,y_b, z_b) = (0.55, 0.2, 0.205), respectively. The value will be compared to the same value in the reference.

A picture of the domain's mesh is shown in Figure 173, while Figure 174 shows a detail of the mesh refinement around the cylinder and the channel's walls.

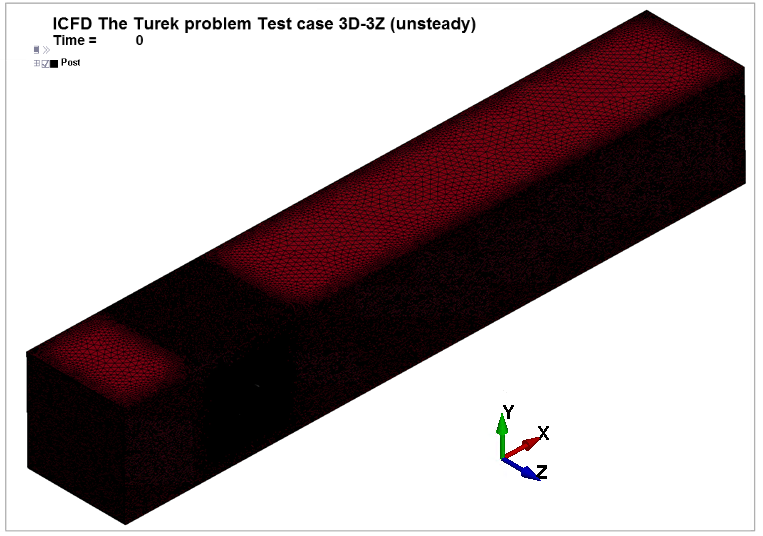

Figure 173: Problem Setup

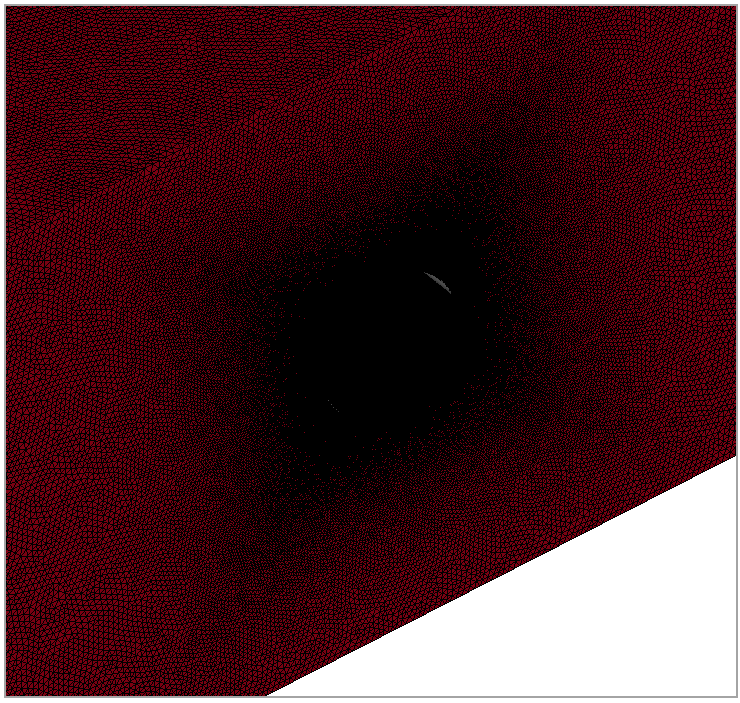

Figure 174: Mesh Detail

Results Comparison

Figure 175 shows the flow velocity contours on the channels' outer surfaces and on a transparent section in the x-y plane for z = 0.205 at different times. You can see the symmetric, laminar, unsteady separation downstream of the cylinder, as well as the boundary layer development along the channel walls. Figure 176 and Figure 177 show respectively the drag and the lift coefficients of the cylinder over time for the current analysis.

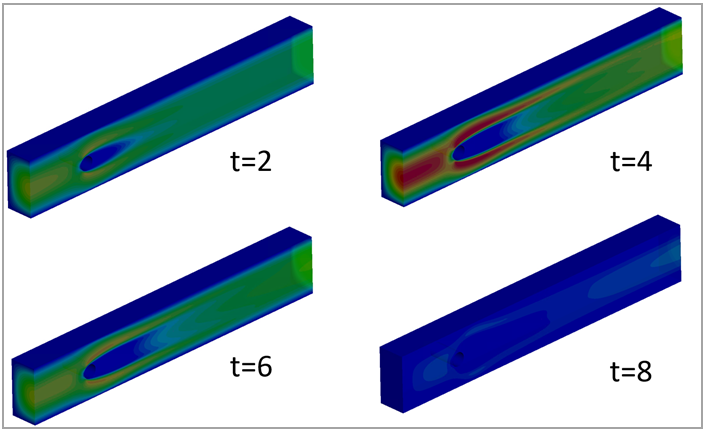

Figure 175: Fluid Velocity Contour (Channel Axial Direction) for Different Times

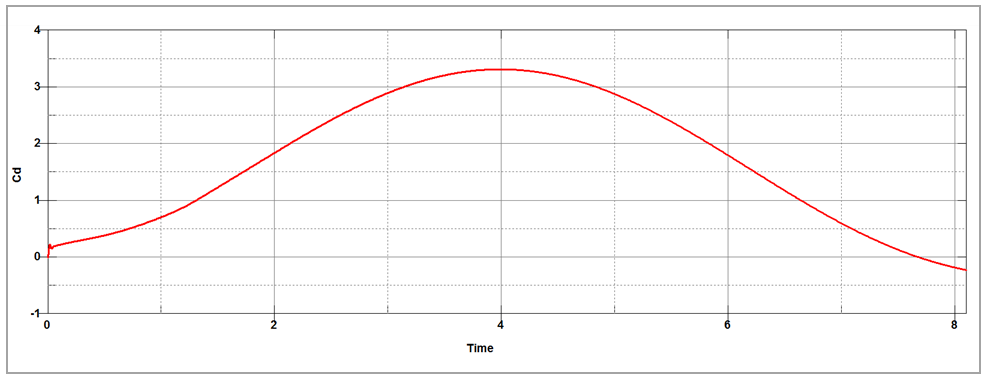

Figure 176: Drag Coefficient Versus Time

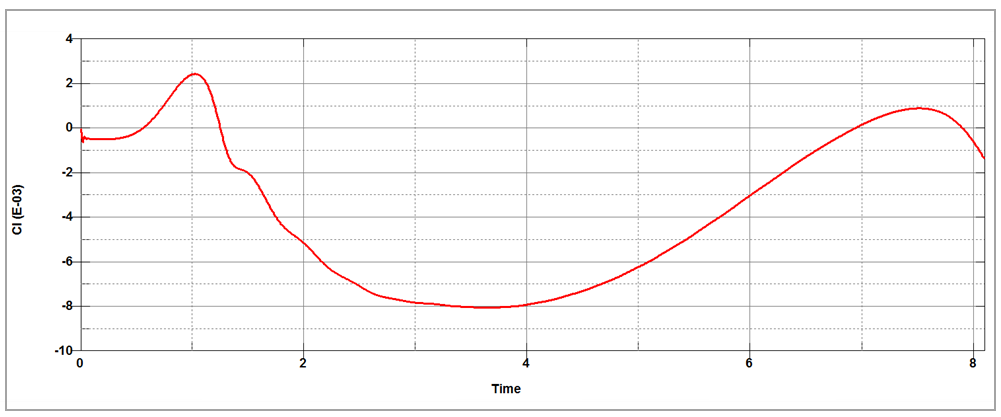

Figure 177: Lift Coefficient Versus Time

The results table below shows a comparison of the maximum drag and lift coefficients ( and ) and the pressure difference between the present analysis and the reference. The reference proposes a comparison of the same values calculated with a variety of different numerical methods. The value below shown in the target column is the average between the upper and lower bounds for each variable. In the case of , the error with respect to the benchmark is higher. This is common in the literature. The main reason is that is sensibly higher than , meaning that the refinement errors are more likely to impact accuracy (see reference Balmus et al. (2022)).

Results	Target	LS-DYNA	Error (%)
	3.2500	3.3219	2.21%
	0.0030	0.0080	168.3%
	–0.1000	-0.1089	8.99%
