2.14. Create Part Set & Import Airbag Curve

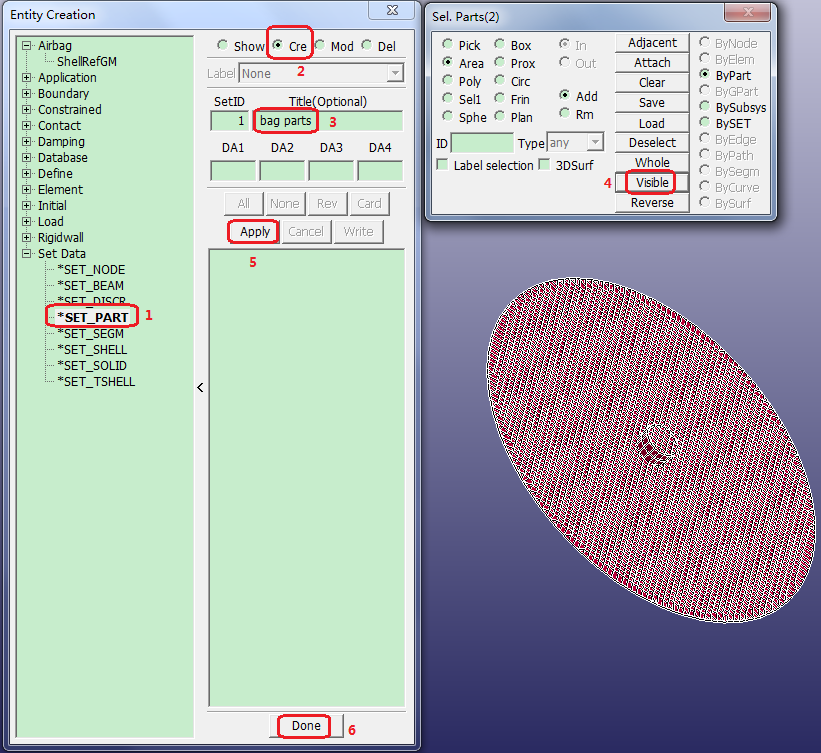

Choose FEM > Model and Part > Create Entity from the menus.

  1. Select *SET_PART from the list.

  2. Select Cre.

  3. Enter Title: bag parts.

  4. Click Visible in gen select panel.

  5. Click Apply.

  6. Click Done.

  7. Choose File > Import > LS-DYNA Keyword File from the menus.

  8. Select curves.k.

  9. Click Import Offset.
