Thermal results such as Temperature and Heat Flux can be evaluated for the setup described earlier and for each layer as seen in the following figures.

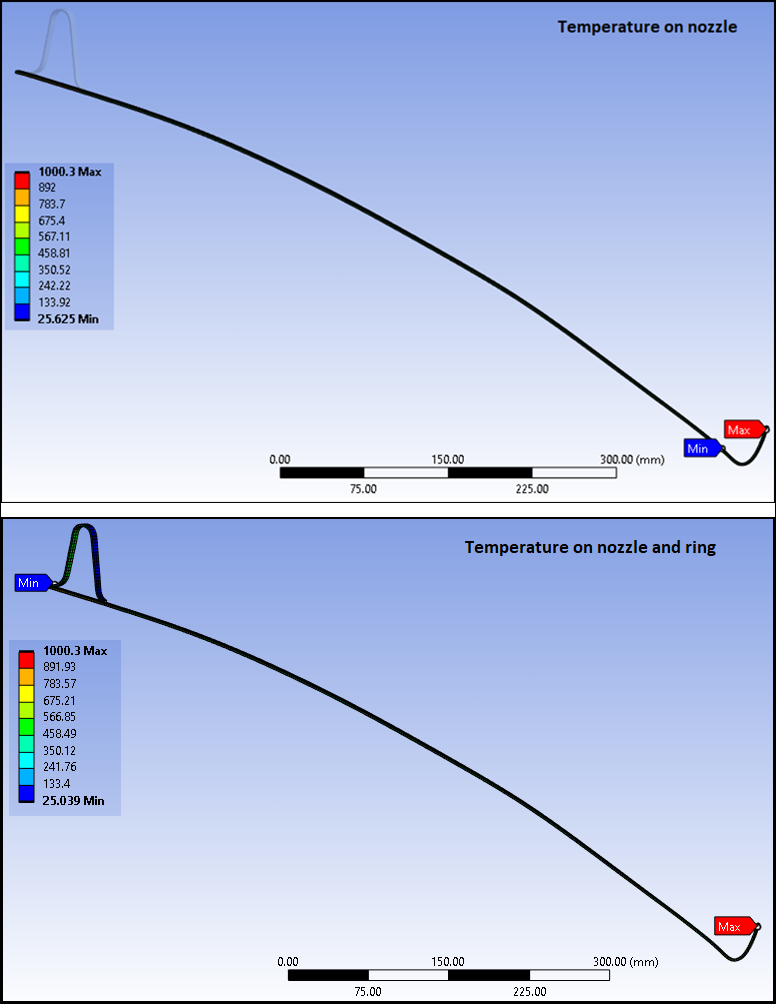

Figure 29.18: Temperature Results on Nozzle and Ring

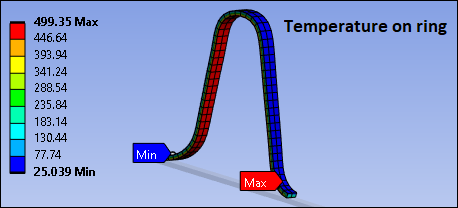

Figure 29.19: Temperature on Ring

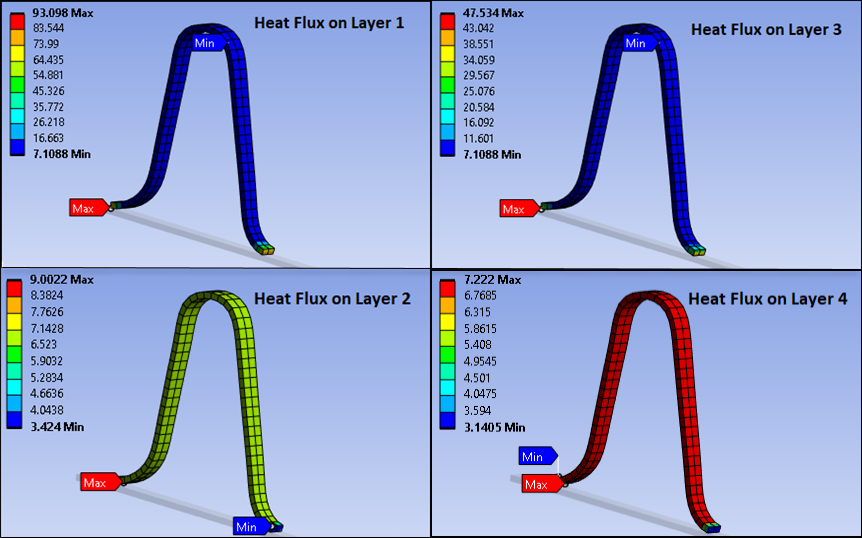

Figure 29.20: Heat flux

Structural results such as Deformation and Equivalent Stress can be evaluated for the above setup and for each layer as seen in the following figures.

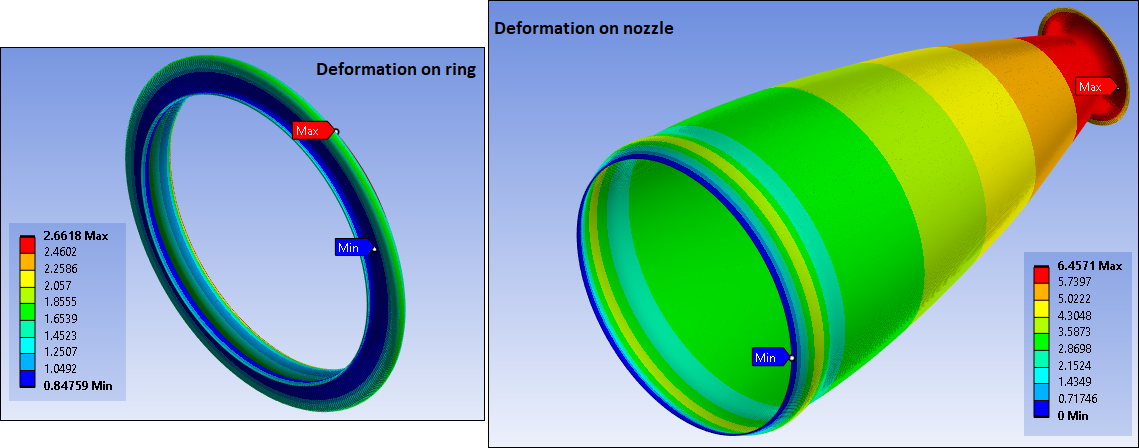

Figure 29.21: Deformation

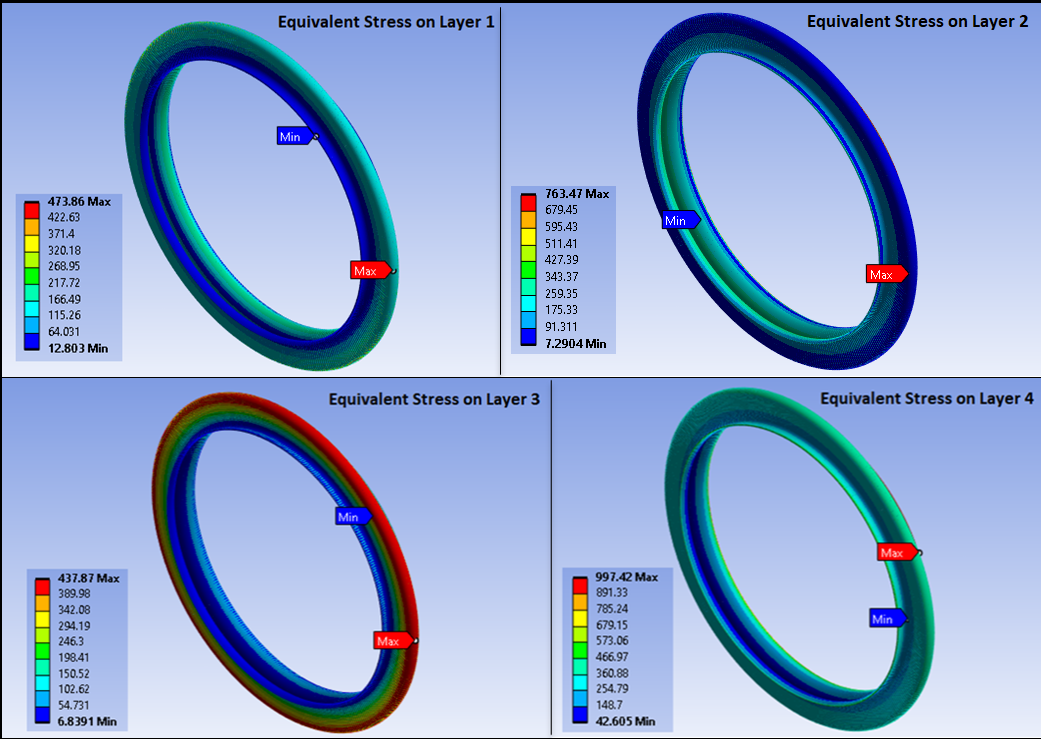

Figure 29.22: Equivalent Stresses in Layer 1, 2, 3 and 4

Figure 29.22: Equivalent Stresses in Layer 1, 2, 3 and 4 shows that the location of peak stress noticeably shifts in the different layers. This underscores the need to study each layer carefully and refrain from drawing immediate conclusions about other layers. For example, peak stresses in layer 4 shift to the bonded region, which could not have been predicted from the layer 1 solution alone.
