The rectangular plate is modeled using 2-D plane elements (PLANE182) with plane stress behavior.

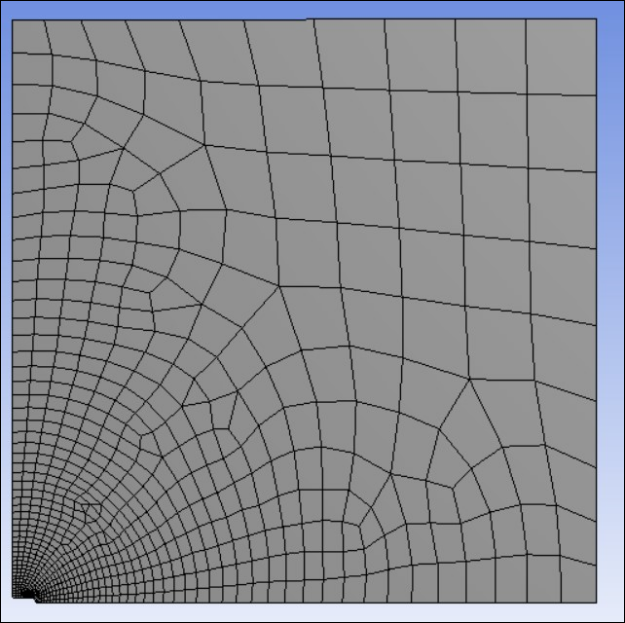

Smaller edge sizing controls are applied to the notch edges and edges that touch the notch to produce a finer mesh locally around the notch, in the area of interest for observing ratcheting effects. The mesh sizing controls have already been implemented in the Workbench project archive file, producing the meshed model shown below.
