VM-WB-MECH-019

VM-WB-MECH-019
Mixed Model Subjected to Bending Loads with Solution Combination

Overview

Reference: Any basic Strength of Materials book
Solver(s):

Ansys Mechanical

Analysis Type(s): Linear Static Structural Analysis
Element Type(s): Beam and Shell

Test Case

A mixed model (shell and beam) has one shell edge fixed as shown below. Bending loads are applied on the free vertex of the beam as given below. Apply a global element size of 80 mm to get accurate results.

  • Scenario 1: Only a force load.

  • Scenario 2: Only a moment load.

Find the deformation in the y direction under Solution Combination with the coefficients for both the environments set to 1.

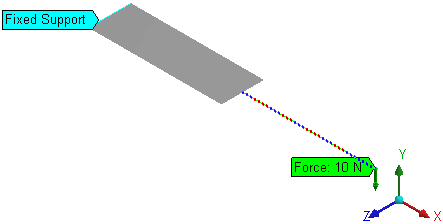

Figure 20: Scenario 1

Scenario 1

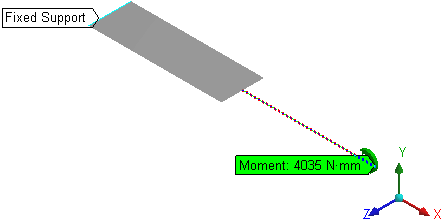

Figure 21: Scenario 2

Scenario 2

Material PropertiesGeometric PropertiesLoading
E = 2e5 Pa
ν = 0
Shell = 160 mm x 500 mm x 10 mm
Beam rectangular cross section = 10 mm x 10 mm
Beam length = 500 mm
Force F = -10 N (y direction)
Moment M = -4035 Nmm @ z-axis

Analysis

where:

I = total bending length of the mixed model
I = moment of inertia of the beam cross-section

Results Comparison

ResultsTargetMechanicalError (%)
Maximum Y-Deformation (mm)-7.18742-7.25420.929
