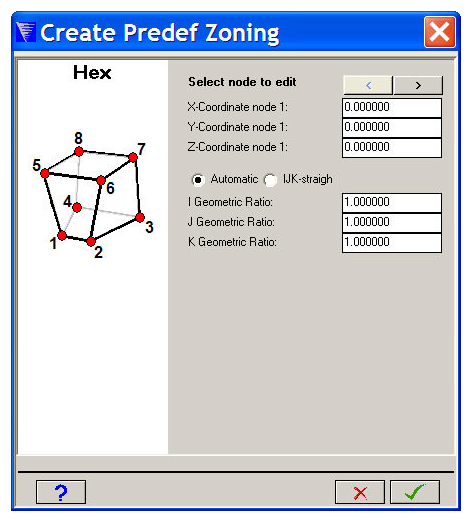

Use the arrow buttons to select each of the 8 nodes in turn.

The X, Y, and Z coordinates of the node.

The number of cells (elements) you want to use in the I, J and K directions. The corresponding number of nodes and elements required for your part will be displayed below.

Select this option if you want the internal nodes to be spaced equipotentially.

Select this option if you want the nodes along each I, J and K line to be equally spaced along a straight line.

Input geometric ratios in the fields provided if you want to grade the zoning instead of generating equally spaced nodes.
