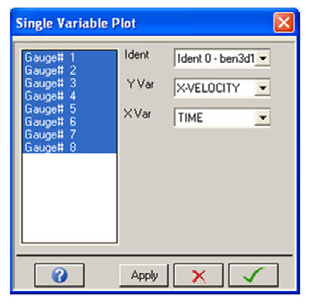

This window lets you compose a single variable plot.
Single variable plots can contain one or more plots (histories) for the same X and Y variables.
- Ident
Select an Ident from the models you have loaded.
- Y Var
The variable assigned to the Y axis.
- X Var
The variable assigned to the X axis (most often TIME).
- Histories to display
From the list on the left, choose as many histories as you wish to display in the plot (use the Ctrl and Shift keys to make your selection).
Important: The choices you have available for variables and histories will depend on the type of plot you have chosen (Gauge points, Material Summaries, and so on).
