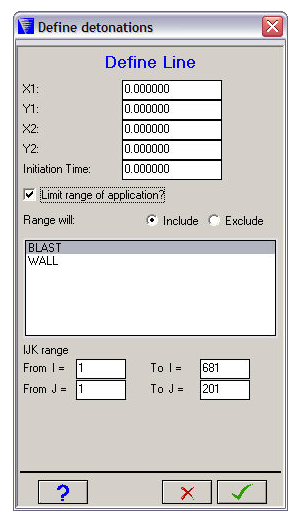

This window lets you define a line of detonation.
- X/Y Coordinates
The X and Y coordinates for the two end points of the line.
- Initiation Time
The initiation time (unless you chose to have it computed).
- Limit range of application?
Limit the range of application of the detonation point (an extra dialog is presented).
- Range will Include / Exclude region
For each Part, you can specify an index range that is used to limit the range of application of the detonation point.
Select whether you want the index range to specify the included region or the excluded region.
- Part list
Lists all the Parts in your model. Select a Part in this window to limit its range of application.
- IJ range
The IJ range you want to use to limit the range of application of the detonation point.
