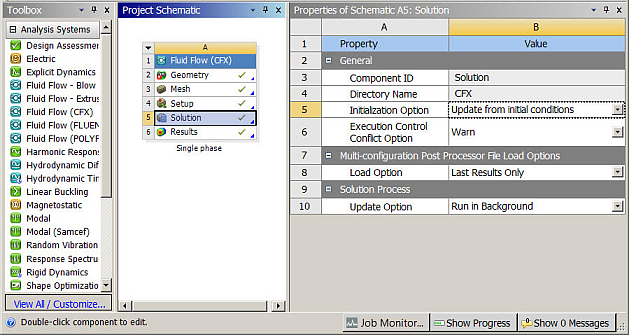

The Properties pane enables you to see properties for the Project Schematic, systems, cells, and schematic links.

The specific items shown in the Properties pane varies according to what you have selected.

In some cases, it displays basic information about the component that cannot be modified from the Properties pane. For example, if you choose to view properties on a link between systems, a list of uneditable connection properties (for example, type and from/to cell identifiers) is displayed.

In other cases, the Properties pane displays detailed information that can be edited. For example, if you choose either Edit or Properties from the Vista TF Setup cell, a fully-editable list of properties is displayed.

If more information on a specific Properties pane is available, you can view the quick help for the cell for which you are viewing properties.
