3.4. Create Mixed Lap Belt

File > Exit.
Open new session of LS-PrePost.
File > Open > LS-DYNA Keyword File.
Open body.k.
Click Front render button.
Click +10 render button.
Right-click Rx render button 2 times.
Click Rz render button 2 times.
Click Acen render button.

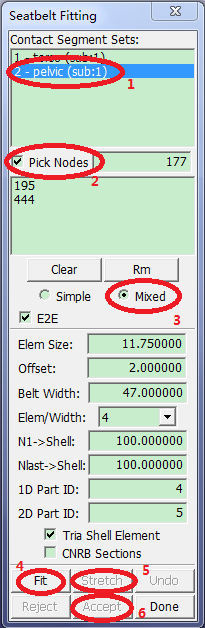

"Application"->"Seatbelt Fitting".
Enter 195 next to Pick Nodes, press Enter on the keyboard.
Enter 444 next to Pick Nodes, press Enter on the keyboard.
Enter 177 next to Pick Nodes, press Enter on the keyboard.
Select 2 - pelvic from the Contact segment set list.
Select Mixed.
Click Fit.
Click Stretch.

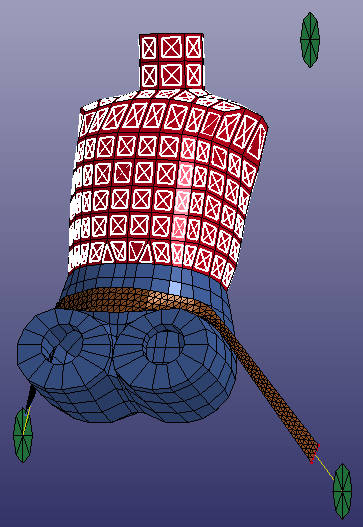

Click Accept.
