3.5. Create Mixed Shoulder Belt

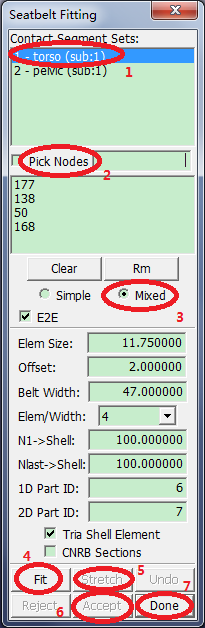

  1. Select 1 - torso from the Contact segment set list.

  2. Enter 177 next to Pick Nodes, press Enter on the keyboard.

  3. Enter 138 next to Pick Nodes, press Enter on the keyboard.

  4. Enter 50 next to Pick Nodes, press Enter on the keyboard.

  5. Enter 168 next to Pick Nodes, press Enter on the keyboard.

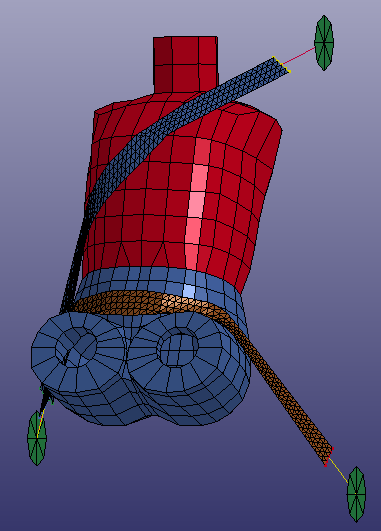

  6. Click Fit.

  7. Click Stretch.

  8. Click Accept.

  9. Click Done.

  10. File > Save Keyword.

  11. Enter Filename: mixed_belts.k.

  12. Click Save.
