Create/Modify Surface

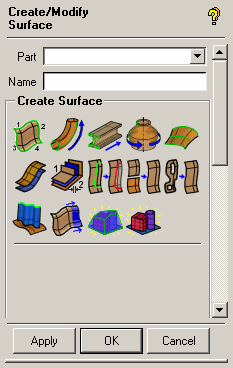

  The different options for creating and modifying surfaces are shown in Figure 184: Create/Modify Surface Options.

Figure 184: Create/Modify Surface Options

Create/Modify Surface Options

  • Part

    The part name for the newly created surface. The default naming behavior can be set in Settings > Geometry Options.

  • Name

    Enter a name for the surface. If no entity name is given, the default naming convention will be followed as described under Settings > Geometry Options.
