The following options are available for the Quality method for pre-mesh smoothing:
- Smoothing iterations
specifies the number of smoothing iterations to be run.
- Up to quality
specifies the quality level for smoothing. The default is 0.2.
- Criterion
specifies the quality criterion for smoothing.
- Determinant 3x3x3
Smoothing by Determinant 3x3x3 tries to locally improve the worst determinant of all elements hanging on a node.
- Angle
Smoothing by Angle tries to locally improve the worst angle of all elements hanging on a node.
- Advanced Options
contains advanced options for smoothing.
- Only visible index range
If enabled, only the elements that are in the index range set by the Index Control will be checked. The Index Control window is accessed from the menu that appears when right-clicking on Blocking in the Display Tree.
- Active parts only
If enabled, only the active parts will be smoothed.

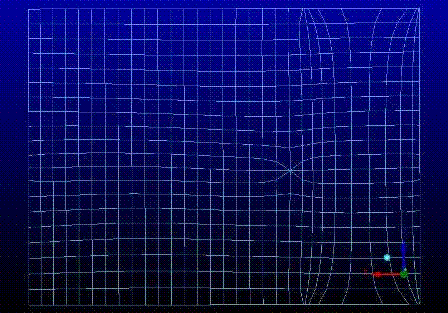

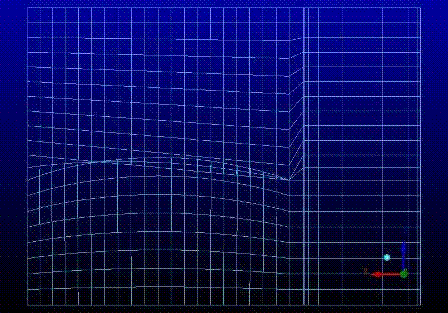

- Laplace smoothing
If enabled, performs Laplace smoothing for the surface. Laplace smoothing works on the whole mesh and tries to create uniform transition.
