Compiled UDFs are built in the same way that the Ansys Fluent executable itself is built.
Internally, a script called Makefile
is used to invoke the system C
compiler to build an object code library that contains the native machine language translation
of your higher-level C source code. The object library is specific to the computer
architecture being used during the Ansys Fluent session, as well as to the particular version of
the Ansys Fluent executable being run. Therefore, UDF object libraries must be rebuilt any time
Ansys Fluent is upgraded, when the computer’s operating system level changes, or when the
job is run on a different type of computer architecture. The generic process for compiling a
UDF involves two steps: compile/build and load.
The compile/build step takes one or more source files (for example,
myudf.c) containing at least one UDF and compiles them into object
files (for example, myudf.o or myudf.obj) and then
builds a "shared library" (for example, libudf
) with the object
files. If you compile your source file using the GUI, this compile/build process is executed
when you click in the Compiled UDFs dialog
box. The shared library that you name (for example, libudf
) is
automatically built for the architecture and version of Ansys Fluent you are running during that
session (for example, lnamd64/2d_host
and
lnamd64/2d_node
), and will store the UDF object file(s).
If you compile your source file using the TUI, you must first set up target folders for
the shared libraries, modify a file named Makefile
to specify source
parameters, and then execute the Makefile
which directs the
compile/build process. Compiling a UDF using the TUI has the added advantage of allowing
precompiled object files derived from non-Ansys Fluent sources to be linked to Ansys Fluent (Link Precompiled Object Files From Non-Ansys Fluent Sources). This option is not available using the
GUI.
After the shared library is built (using the TUI or GUI), you load the UDF library into
Ansys Fluent before you can use it. You can do this using the Load button in
the Compiled UDFs dialog box. After being loaded, all of the compiled
UDFs that are contained within the shared library will become visible and selectable in
graphics dialog boxes in Ansys Fluent. Note that compiled UDFs are displayed in Ansys Fluent dialog
boxes with the associated UDF library name separated by two colons
(::
). For example, a compiled UDF named
rrate
that is associated with a shared library named
libudf
would appear in Ansys Fluent dialog boxes as
rrate::libudf
. This distinguishes UDFs that are compiled from those
that are interpreted.
If you write your case file when a UDF library is loaded, the library will be saved with the case and will be automatically loaded whenever that case file is subsequently read. This process of "dynamic loading" saves you having to reload the compiled library every time you want to run a simulation.
Before you compile your UDF source file(s) using one of the two methods provided in Compiling a UDF Using the GUI and Compile a UDF Using the TUI, you must make sure that the udf.h header file is accessible in your path, or is saved locally within your working folder (Location of the udf.h File).
For more information, see the following sections:
UDFs are defined using DEFINE
macros (see
DEFINE
Macros) and the definitions for
DEFINE
macros are included in udf.h.
Consequently, before you compile your source file, the udf.h header
file must be accessible in your path, or saved locally within your working folder.
The location of the udf.h file is:
path
\ANSYS
Inc\v242\fluent\fluent24.2.0\src\udf\udf.h
where path
is the folder in which you
have installed Ansys Fluent (by default, the path is C:\Program
Files).
Important:
You should not, under any circumstances, alter the udf.h file.
In general, you should not copy udf.h from the installation area. The compiler is designed to look for this file locally (in your current folder) first. If it is not found in your current folder, the compiler will look in the \src\udf folder automatically. In the event that you upgrade your release area, but do not delete an old copy of udf.h from your working folder, you will not be accessing the most recent version of this file.
There may be instances when you will want to include additional header files in the compilation process. Make sure that all header files needed for UDFs are located in a folder under the \src folder.
The graphical and text interface processes for a compiled UDF require the use of a C compiler that is native to the operating system and machine you are running on. Most Linux operating systems provide a C compiler as a standard feature. For Linux machines, Ansys Fluent supports any ANSI-compliant compiler. If you are operating on a Windows system, it is recommended that you install a supported version of Microsoft Visual Studio or Clang on your machine before you proceed (for a list of supported versions, see Compiler Requirements for Windows Systems); note that if Fluent determines that you have not installed a compiler on your computer, a built-in compiler (Clang) that is provided as part of the Fluent installation is automatically used. If you are unsure about compiler requirements for your system, contact Ansys Fluent installation support.
Important: Obsolete versions of any native compiler may not work properly with compiled UDFs.

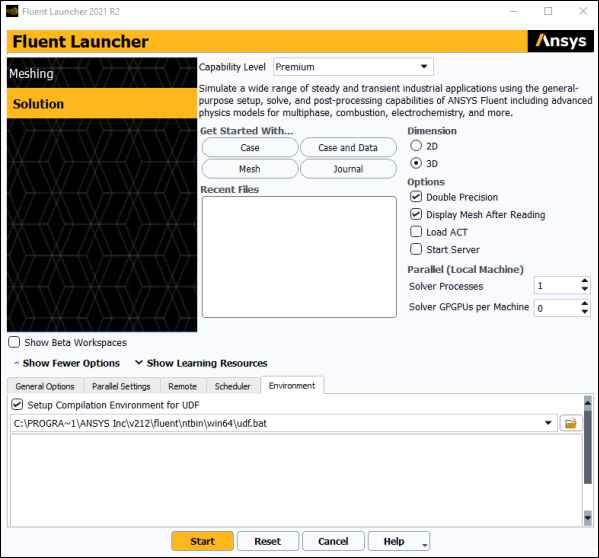

When launching Ansys Fluent on Windows using Fluent Launcher, the Environment tab (Figure 5.1: The Environment Tab of the Fluent Launcher Dialog Box) allows you to specify compiler settings for compiling UDFs.
The Set up Compilation Environment for UDF
option is enabled by default, and allows you to specify a batch file that contains UDF
compilation environment settings. Enter a batch file name and path in the field, or click to browse for a batch file. By default, the Fluent Launcher dialog box is
set to use the udf.bat
file that is saved in your computer as part
of the Ansys Fluent installation. It is recommended that you keep the default batch file, which
is tested with versions of MS Visual Studio C++ and Clang compilers, as well as the built-in
compiler.
