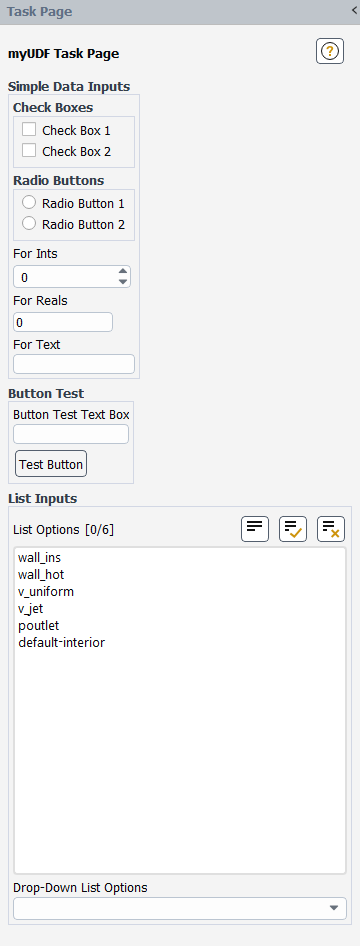

This section contains the code for a task page that includes all of the features discussed in part two of this guide. This example can be used in conjunction with the UDF Example found later in this chapter in order to verify that the data is passed from the task page to the UDF using RP variables. This example contains comments in order to help readers understand the various parts of the example. All Scheme comment lines start with a semi-colon. This code automatically creates a menu called New Menu 2, with a submenu called New Submenu 2. The task page is automatically added as a menu item in New Submenu 2.
Note: In order for the List Options and Drop-Down List Options fields to populate, you must first read a mesh into Fluent because it uses information from the mesh as the list items.
This example uses a couple of Fluent macros that are not seen previously in part two of
this guide. The line (map thread-name(get-face-threads)) in the
update-cb function is used to populate the list and drop-down list
fields using face threads from your current mesh when the task page is opened. As seen in
chapter one, the Map statement applies a single function over a
list of data. This makes thread-name the function, which simply gets
the name of the thread name as text from the thread itself. The
get-face-threads part of the statement is the list that the
function is being applied to, meaning that this statement returns a list of face threads from
the mesh on which the thread-name function can operate.
The other macro in this example that is not covered previously in part two of this guide
is the (%run-udf-apply) macro. This macro is used because the
corresponding UDF Example uses a
DEFINE_EXECUTE_FROM_GUI statement. This allows you to run your UDF
from the or button of your GUI. The
(%run-udf-apply) macro is used in the
apply-cb function as a call to run the UDF. This macro has requires
one integer parameter. This integer is used in the UDF to determine what the programmer asked
it to do. This is seen in the example below. The has a
different job then the button, so it passes the integer 1 instead
of 2. When the UDF runs, it will test the value of that integer and decide what to do
depending on what the integer is. The DEFINE_EXECUTE_FROM_GUI
statement is the only DEFINE statement that uses a Scheme macro in
the GUI code to invoke the UDF. Other DEFINE macros allow the UDF to
be run at various times during a simulation or, in the case of the
DEFINE_EXECUTE_ON_DEMAND statement, whenever you want by
right-clicking User Defined Functions under the Parameters
& Customization branch of the tree and selecting . For more information on the various DEFINE
statements available for use in your UDF, see
DEFINE Macros.
;RP Variable Declarations
(make-new-rpvar 'myudf/real 0 'real)
(make-new-rpvar 'myudf/int 0 'int)
(make-new-rpvar 'myudf/checkbox1 #f 'boolean)
(make-new-rpvar 'myudf/checkbox2 #f 'boolean)
(make-new-rpvar 'myudf/radiobutton1 #f 'boolean)
(make-new-rpvar 'myudf/radiobutton2 #f 'boolean)
(make-new-rpvar 'myudf/string "" 'string)
(make-new-rpvar 'myudf/buttonstr "" 'string)
(make-new-rpvar 'myudf/list '() 'string-list)
(make-new-rpvar 'myudf/droplist '() 'string-list)
;Task Page Definition
(define gui-task-page
;Let Statement, Local Variable Declarations
(let ((task-page #f)
(table)
(myudf/box1)
(myudf/box2)
(myudf/box3)
(myudf/buttonbox1)
(myudf/checkbox1)
(myudf/checkbox2)
(myudf/buttonbox2)
(myudf/radiobutton1)
(myudf/radiobutton2)
(myudf/real)
(myudf/int)
(myudf/string)
(myudf/buttonstr)
(myudf/list)
(myudf/droplist)
)
;Update-CB Function, Invoked When Task Page Is Opened
(define (update-cb . args)
(cx-set-toggle-button myudf/checkbox1 (rpgetvar 'myudf/checkbox1))
(cx-set-toggle-button myudf/checkbox2 (rpgetvar 'myudf/checkbox2))
(cx-set-toggle-button myudf/radiobutton1 (rpgetvar 'myudf/radiobutton1))
(cx-set-toggle-button myudf/radiobutton2 (rpgetvar 'myudf/radiobutton2))
(cx-set-integer-entry myudf/int (rpgetvar 'myudf/int))
(cx-set-real-entry myudf/real (rpgetvar 'myudf/real))
(cx-set-text-entry myudf/string (rpgetvar 'myudf/string))
(cx-set-text-entry myudf/buttonstr (rpgetvar 'myudf/buttonstr))
(cx-set-list-items myudf/list (map thread-name(get-face-threads)))
(cx-set-list-selections myudf/list (rpgetvar 'myudf/list))
(cx-set-list-items myudf/droplist (map thread-name(get-face-threads)))
(cx-set-list-selections myudf/droplist (rpgetvar 'myudf/droplist))
)
;Apply-CB Function, Invoked When "Apply" Button Is Clicked
(define (apply-cb . args)
(rpsetvar 'myudf/checkbox1 (cx-show-toggle-button myudf/checkbox1))
(rpsetvar 'myudf/checkbox2 (cx-show-toggle-button myudf/checkbox2))
(rpsetvar 'myudf/radiobutton1 (cx-show-toggle-button myudf/radiobutton1))
(rpsetvar 'myudf/radiobutton2 (cx-show-toggle-button myudf/radiobutton2))
(rpsetvar 'myudf/int (cx-show-integer-entry myudf/int))
(rpsetvar 'myudf/real (cx-show-real-entry myudf/real))
(rpsetvar 'myudf/string (cx-show-text-entry myudf/string))
(rpsetvar 'myudf/buttonstr (cx-show-text-entry myudf/buttonstr))
(rpsetvar 'myudf/list (cx-show-list-selections myudf/list))
(rpsetvar 'myudf/droplist (cx-show-list-selections myudf/droplist))
(%run-udf-apply 2)
)
;Button-CB Function, Invoked When "Test Button" Is Clicked
(define (button-cb . args)
(rpsetvar 'myudf/buttonstr (cx-show-text-entry myudf/buttonstr))
(%run-udf-apply 1)
)
;Args Function, Used For Interface Setup, Required For Apply-CB, Update-CB, and Button-CB Sections
(lambda args
(if (not task-page)
(let ()
(set! task-page (cx-create-taskpage "myUDF Task Page" apply-cb update-cb))
(set! table (cx-create-table task-page "" 'border #f 'below 0 'right-of 0))
(set! myudf/box1 (cx-create-table table "Simple Data Inputs" 'row 0))
(set! myudf/box2 (cx-create-table table "Button Test" 'row 1))
(set! myudf/box3 (cx-create-table table "List Inputs" 'row 2))
(set! myudf/buttonbox1 (cx-create-button-box myudf/box1 "Check Boxes" 'radio-mode #f 'row 0))
(set! myudf/checkbox1 (cx-create-toggle-button myudf/buttonbox1 "Check Box 1"))
(set! myudf/checkbox2 (cx-create-toggle-button myudf/buttonbox1 "Check Box 2"))
(set! myudf/buttonbox2 (cx-create-button-box myudf/box1 "Radio Buttons" 'radio-mode #t 'row 1))
(set! myudf/radiobutton1 (cx-create-toggle-button myudf/buttonbox2 "Radio Button 1"))
(set! myudf/radiobutton2 (cx-create-toggle-button myudf/buttonbox2 "Radio Button 2"))
(set! myudf/int (cx-create-integer-entry myudf/box1 "For Ints" 'row 2))
(set! myudf/real (cx-create-real-entry myudf/box1 "For Reals" 'row 3))
(set! myudf/string (cx-create-text-entry myudf/box1 "For Text" 'row 4))
(set! myudf/buttonstr (cx-create-text-entry myudf/box2 "Button Test Text Box" 'row 0))
(cx-create-button myudf/box2 "Test Button" 'activate-callback button-cb 'row 1)
(set! myudf/list (cx-create-list myudf/box3 "List Options" 'visible-lines 5 'multiple-selections #t 'row 0))
(cx-set-list-items myudf/list (map thread-name (sort-threads-by-name(get-face-threads))))
(set! myudf/droplist (cx-create-drop-down-list myudf/box3 "Drop-Down List Options" 'multiple-selections #f 'row 1))
(cx-set-list-items myudf/droplist (map thread-name (sort-threads-by-name(get-face-threads))))
) ;End Of Let Statement
) ;End Of If Statement
;Call To Open Task Page
(cx-show-taskpage task-page)
) ;End Of Args Function
) ;End Of Let Statement
) ;End Of GUI-Task-Page Definition
(cx-add-menu "New Menu 2" #f)
(cx-add-hitem "New Menu 2" "New Submenu 2" #f #f #t #f)
;Menu Item Added To Above Created "New Menu 2->New Submenu 2" Submenu In Fluent
(cx-add-item "New Submenu 2" "MyUDF Task Page" #\U #f #t gui-task-page)
