VMFL072
VMFL072
Liquid Water Flow Over a Flat Plate Under the Influence of Gravity
Overview
| Reference |
Roy, R.P. & Jain, S. (1989). A study of thin water film flow down an inclined plate without and with countercurrent air flow. Experiments in Fluids, (7) 318-328. |
| Solver | Ansys Fluent |
| Physics/Models | Eulerian Wall Film |
| Input File | VMFL072_FLUENT.cas.h5 |
| Project Files | Link to Project Files Download Page |
Test Case
A water film Reynolds number of 417 and a plate inclination angle of 40° without counter current airflow are selected for the present study. The film is introduced as a mass flux boundary on the wall patch injection. Film thickness is calculated at a downstream location wall-monitor.
| Material Properties | Geometry | Boundary Conditions. |
|---|---|---|
|
Fluid domain is air while water-liquid is injected at the wall patch. |

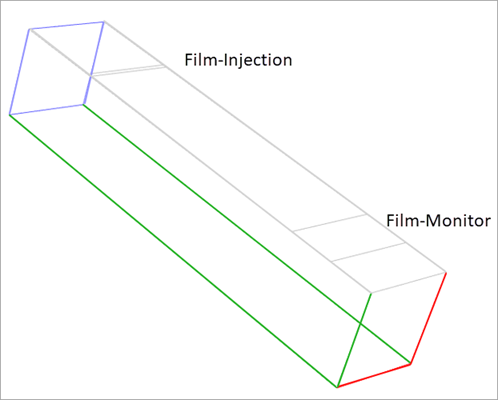

Dimensions of the domain: 500 mm x 100 mm x 100 mm Injection width: 5 mm Wall-monitor width: 50 mm |
Mass Flux of Water-liquid = 76.2 kg/m2-s X-Gravitational Acceleration = 6.305746 m/s2 Y-Gravitational Acceleration = 0 m/s2 Z-Gravitational Acceleration = -7.514896 m/s2 |
