Transitional Supersonic Flow Over a Rearward Facing Step

Overview

Reference

H.E. Smith. “The Flow Field and Heat Transfer Downstream of a Rearward Facing Step in Supersonic Flow”. ARL 67-0056, Aerospace Research Laboratories. Ohio, USA.

Solver Ansys Fluent

Physics/Models

Compressible Flow, Transitional turbulence modeling (Transition SST model)

Input File

VMFL060_FLUENT.cas

Project Files Link to Project Files Download Page

Test Case

Supersonic flow with an inlet Mach number 2.5 past a backward facing step is modeled. Key features of the flow field include sudden expansion, free shear layer, recirculation zone, and oblique shock. Reynolds number of the flow (based on step height) is in the transitional range.

Figure 147: Flow Domain

Material Properties	Geometry	Boundary Conditions
Density: Ideal gas Viscosity = 1.7894 X 10^-5 kg/m-sec	Step Height = 0.443 in Inlet: 4 in upstream of the step Outlet: 12 in downstream of the step Transverse (top) boundary: 6.25 in above the step.	Total pressure at inlet = 227527 Pa Static Pressure at Inlet = 13316.6 Total temperature at inlet = 344.44 K Transverse boundary modeled as farfield Walls are modeled as adiabatic

Material Properties

Geometry

Boundary Conditions

Density: Ideal gas

Viscosity =

1.7894 X 10^-5 kg/m-sec

Step Height = 0.443 in

Inlet: 4 in upstream of the step

Outlet: 12 in downstream of the step

Transverse (top) boundary: 6.25 in above the step.

Total pressure at inlet = 227527 Pa

Static Pressure at Inlet = 13316.6

Total temperature at inlet = 344.44 K

Transverse boundary modeled as farfield

Walls are modeled as adiabatic

Analysis Assumptions and Modeling Notes

The flow is modeled using transitional turbulence models.

Results Comparison for Ansys Fluent

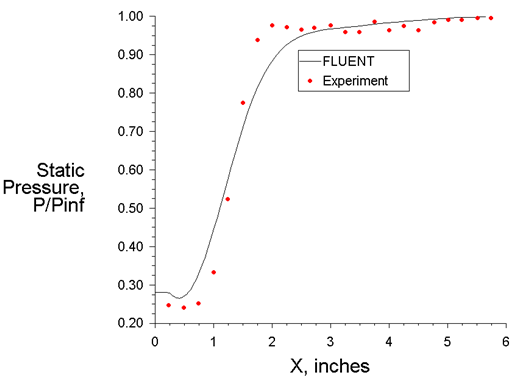

Figure 148: Comparison of Non-Dimensionalized Static Pressure along the Stepped Wall Downstream of the Corner
