Turbulent flow in a 180° Pipe Bend

Overview

Reference T. Takamasa, A. Tomiyama. "Three-dimensional gas-liquid two-phase bubbly flow in a C-shaped tube". NURETH-9. San Francisco, USA. pp. 1-17. 1999.

Solver Ansys Fluent

Physics/Models SST model, turbulent flow with separation and reattachment

Input File

VMFL048_pipebend.cas

Project Files Link to Project Files Download Page

Test Case

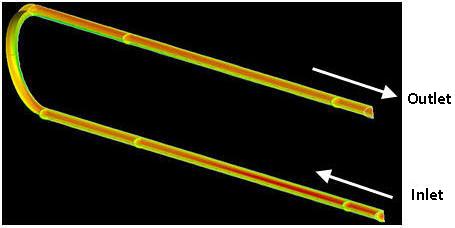

Flow in a 3-D pipe bend as shown in Figure 121: Flow Domain.

Figure 121: Flow Domain

Material Properties	Geometry	Boundary Conditions
Density: 997 kg/m³ Viscosity: 8.899 X 10^-4 kg/m-s	Radius of the pipe = 14 mm Radius of the pipe bend = 125 mm	Velocity profile at inlet with an average velocity of 1.42 m/s

Material Properties

Geometry

Boundary Conditions

Density: 997 kg/m³

Viscosity: 8.899 X 10^-4 kg/m-s

Radius of the pipe = 14 mm

Radius of the pipe bend = 125 mm

Velocity profile at inlet with an average velocity of 1.42 m/s

Analysis Assumptions and Modeling Notes

The flow is steady. Symmetry condition is applied on one side of the pipe.

Results Comparison for Ansys Fluent

Figure 122: Comparison of Velocity in the Axial Direction at a Section 1.555 m upstream of the Outlet (after the bend)
