VMFL038

VMFL038
Falling Film Over an Inclined Plane

Overview

Reference R.B. Bird, W.E. Steward, E.N. Lightfoot, Transport Phenomena. John Wiley and Sons, Inc., New York, NY, pg. 45, 2005

Solver Ansys Fluent

Physics/Models Laminar Flow, Coupled solver

Input File

VMFL038_FLUENT.cas

Project Files Link to Project Files Download Page

Test Case

Laminar flow of a fluid over an inclined plane, driven by the pressure difference due to gravity head is modeled. The flow channel is inclined at an angle β = 30° with the horizontal direction.

Figure 97: Flow Domain

Material Properties

Geometry

Boundary Conditions

Density = 800 kg/m³

Viscosity = 1 kg/m-s

Dimensions of the domain:

1 m X 18 m

Angle with X-axis = 30°

Gauge Pressure at Inlet = 0 N/m²

Gauge Pressure at Outlet = -706.32 N/m²

Analysis Assumptions and Modeling Notes

The density based solver is used in Ansys Fluent. Pressure boundaries are specified to model the driving head in the direction of flow.

Results Comparison for Ansys Fluent

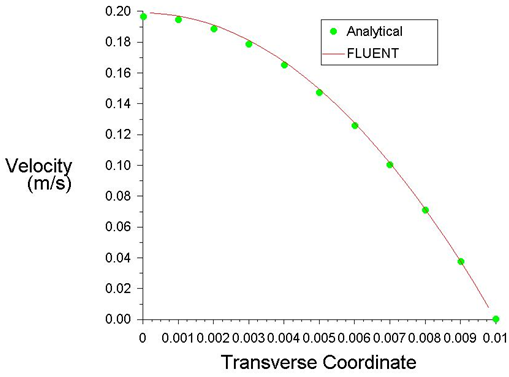

Figure 98: Comparison of Velocity Profile at Outlet
