To simulate the desired deflection pattern, it is important to use supports that allow rotation similar to that observed in the experiments.

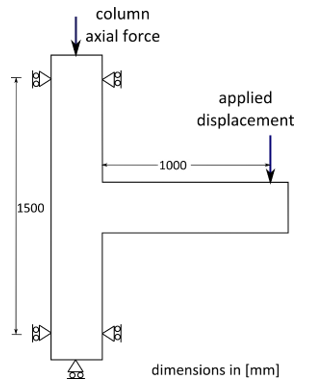

Loading is applied at two points:
A load-controlled axial force of 94.8 kN is applied to the column and kept constant.
A displacement of 80 mm is applied gradually (via two separate load steps) near the tip of the beam.
