65.5. Boundary Conditions and Loading

The model is fixed at the ends of the saddle base plates.

A 10,000 lb. impulse load is applied to the center top surface of the access port cover plate.

The load is ramped from zero to 10,000 in 2e-4 seconds and then back to zero after 0.0011 seconds.

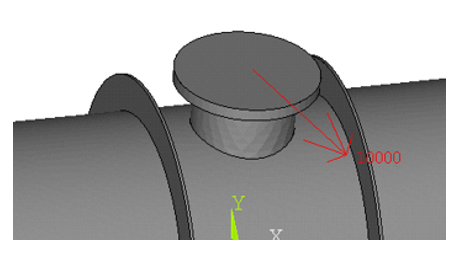

Figure 65.3: Force Location

Force Location

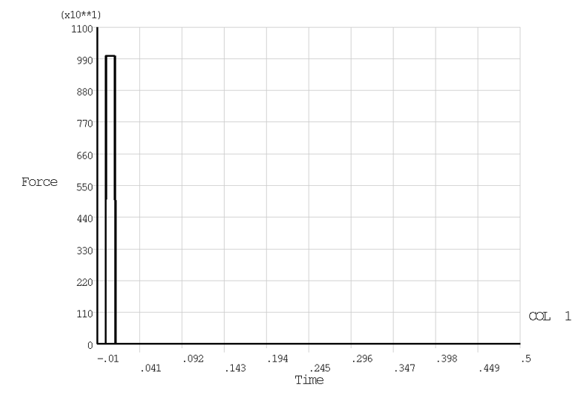

Figure 65.4: Force vs. Time

Force vs. Time

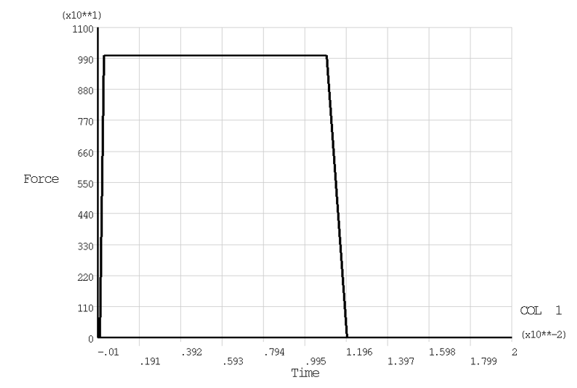

Figure 65.5: Force vs. Time (Up to 20 Milliseconds)

Force vs. Time (Up to 20 Milliseconds)
