44.3. Modeling

For 3D models, the recommended element type near the crack front is SOLID186, the 3D 20-node structural solid (brick).

The rectangular block and x-joint pipe models are meshed with SOLID187 3D 10-node tetrahedral structural solid elements (except for the regions around the crack tip).

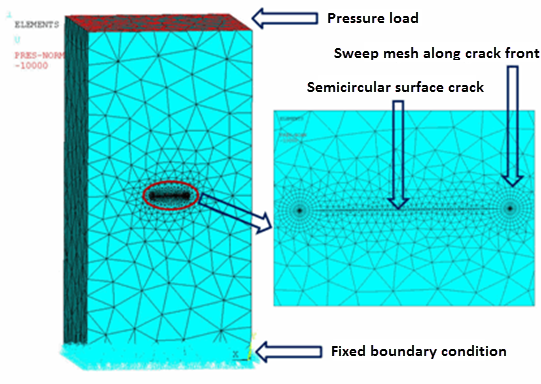

Figure 44.6: Rectangular Block Model with Boundary Conditions and Loading Applied

Rectangular Block Model with Boundary Conditions and Loading Applied

Regions around the crack tips are meshed with SOLID186:

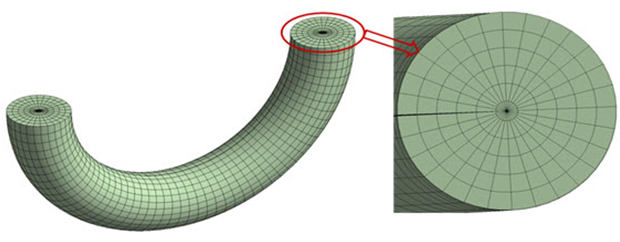

Figure 44.7: Sweep Mesh with SOLID186 Around Crack Front

Sweep Mesh with SOLID186 Around Crack Front

Because of the two-plane symmetry inherent to the X-joint problem, a quarter model is considered for analysis:

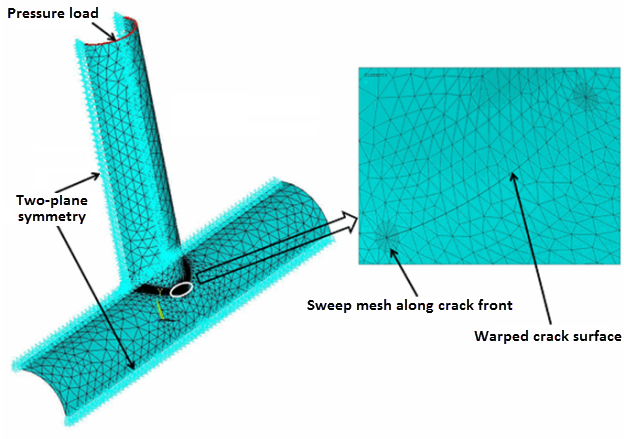

Figure 44.8: Two-plane Symmetry of X-joint Pipe with Warped Surface Flaw at Welded Joint

Two-plane Symmetry of X-joint Pipe with Warped Surface Flaw at Welded Joint

If the crack surface is not normal to any component in the global coordinate system, a local coordinate system should be created in such a way that one component of the coordinate system is perpendicular to the crack surface. For example, in the X-joint model, a local cylindrical coordinate system is created such that one of its components is normal to the crack surface:

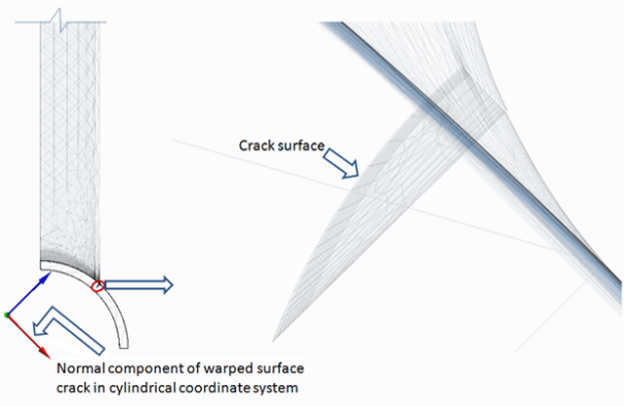

Figure 44.9: X-joint Pipe with Warped Surface Flaw at Welded Joint in Thickness Direction

X-joint Pipe with Warped Surface Flaw at Welded Joint in Thickness Direction

In the X-joint model, the warped crack in the thickness direction is perpendicular to the inner surface of the 323.85 mm diameter pipe.

A torus is created around the crack front to obtain a good sweep mesh (VSWEEP). A common area separates the torus and the remaining volume at the interface.

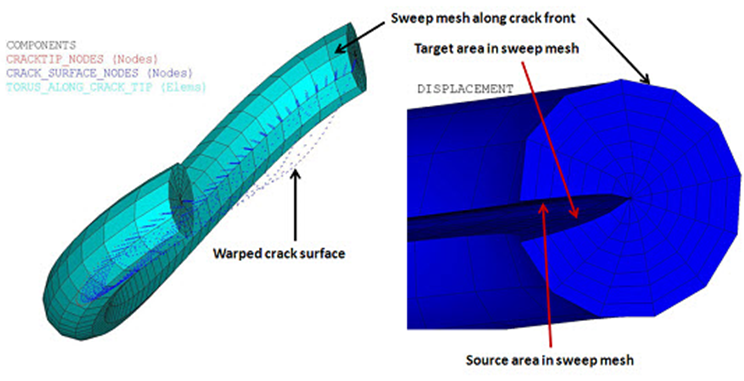

In 3D models, a fracture has two surfaces with a common edge at the crack front; the same is true for the torus. The two torus surfaces are used to create a clean sweep mesh around the crack front. One surface is defined as the source, the other as the target. In this procedure, the sweep mesh generates brick elements with one layer of prism elements around the crack front. Following is the sweep mesh with SOLID186 around the crack front in the x-joint pipe model, with the source and target areas for the sweep mesh indicated in the deformed body:

Figure 44.10: Sweep Mesh with SOLID186 Around the Crack Front

Sweep Mesh with SOLID186 Around the Crack Front

The warped surface contains a sweep mesh and a set of nodes, along with source and target areas in the deformed torus body. The source and target areas existed at the same location in the non-deformed structure.

The crack parameters are defined after meshing:

Example 44.1: Defining Parameters Associated with Contour Integral Calculation

! Initiate a new contour integral calculation and define type
CINT, NEW, 1               ! Initiate new calculation and assign ID
CINT,TYPE,CSTAR            ! Define calculation of C*-integral

A line component of the crack front lines (CM) is created. The component is useful for selecting nodes attached to the crack front (NSLL). The nodal component of those nodes is used to define crack tip node components (CINT,CTNC), as shown in the following figures:

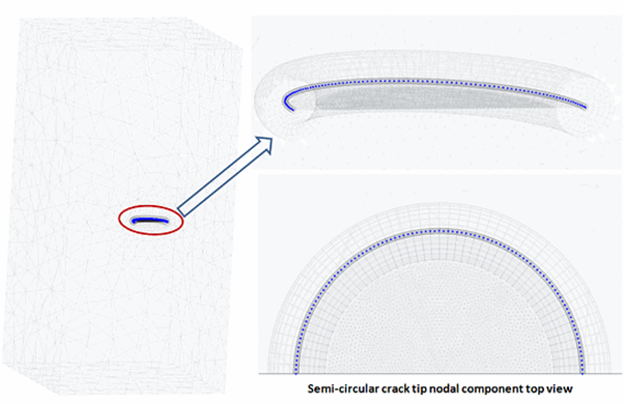

Figure 44.11: Crack Tip Nodal Component: Rectangular Block Model

Crack Tip Nodal Component: Rectangular Block Model

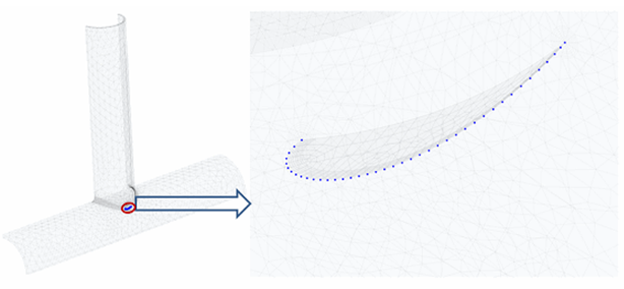

Figure 44.12: Crack Tip Nodal Component: X-joint Pipe Model

Crack Tip Nodal Component: X-joint Pipe Model
