3.9.2. Structural Results: Deformation, Recoater Interference, and High Strain

Now let's look at structural results.

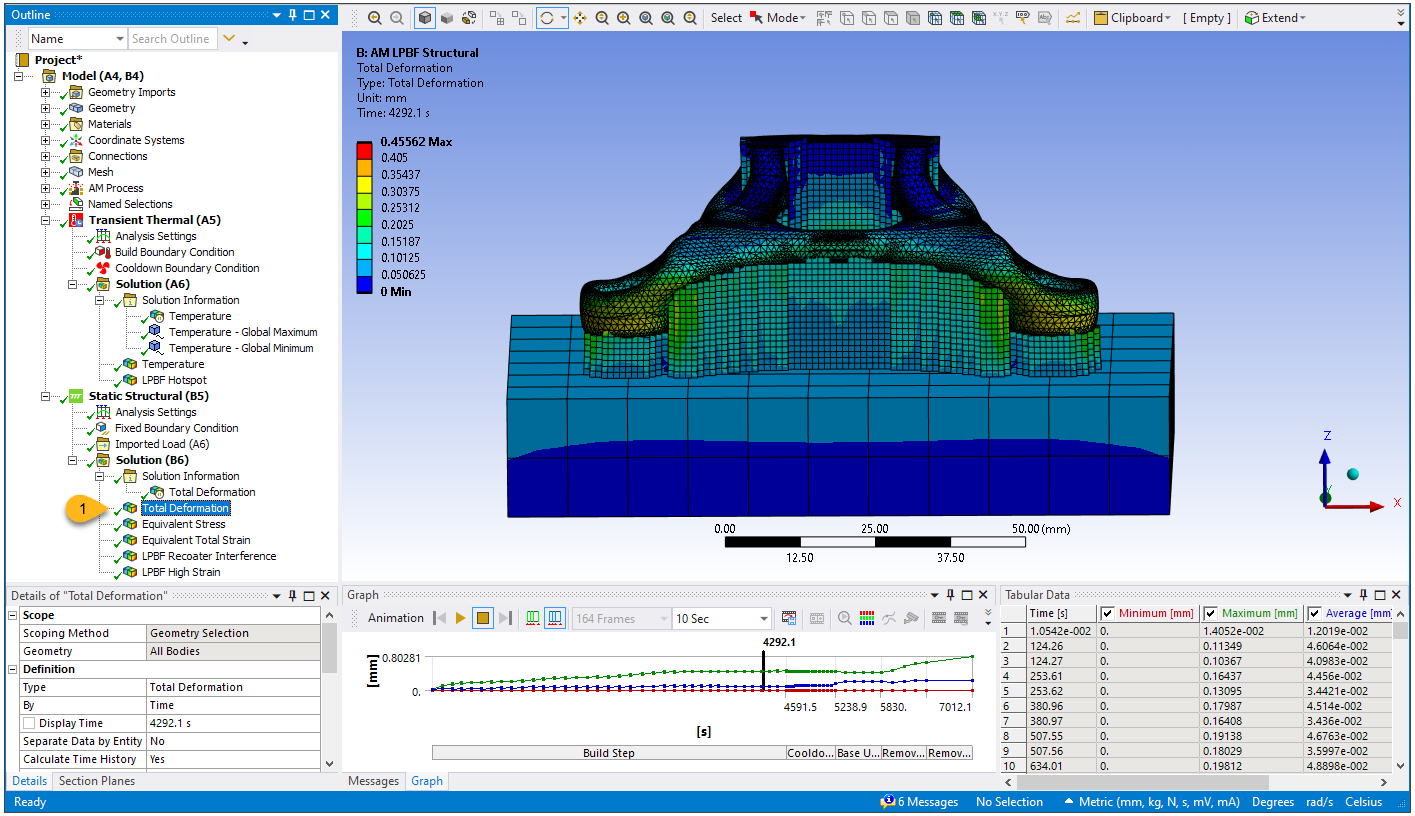

  1. Under Static Structural > Solution, click Total Deformation to view the deformation results.

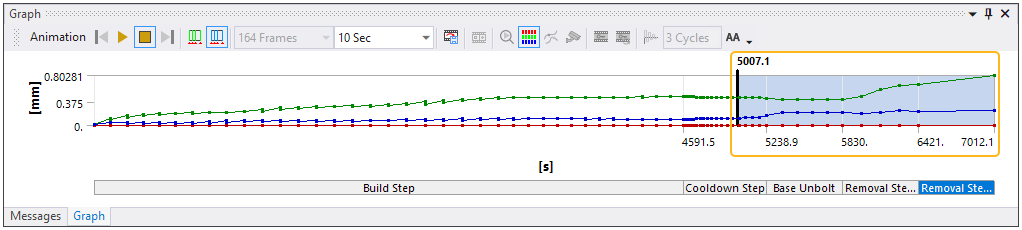

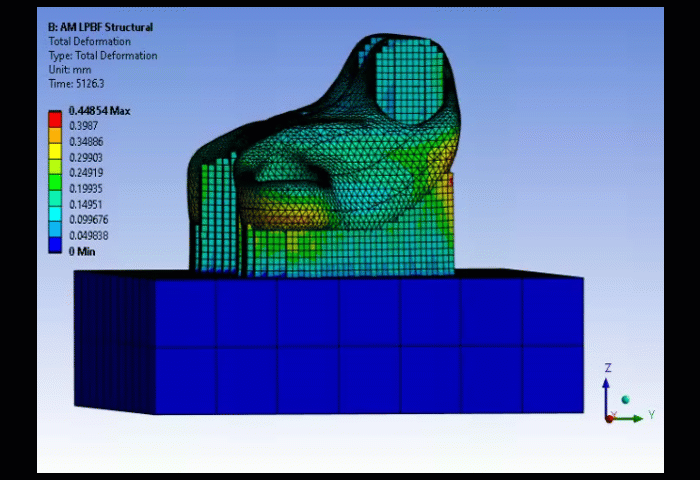

    You can zoom in on a specific subset of time steps and animate the results. Below is an animation of total deformation showing just the zoomed-in results which include the last few substeps of the cooldown step, and the base unbolting, base removal, and support removal steps.

    The image above is an animated gif. The animation is not viewable in PDF format.

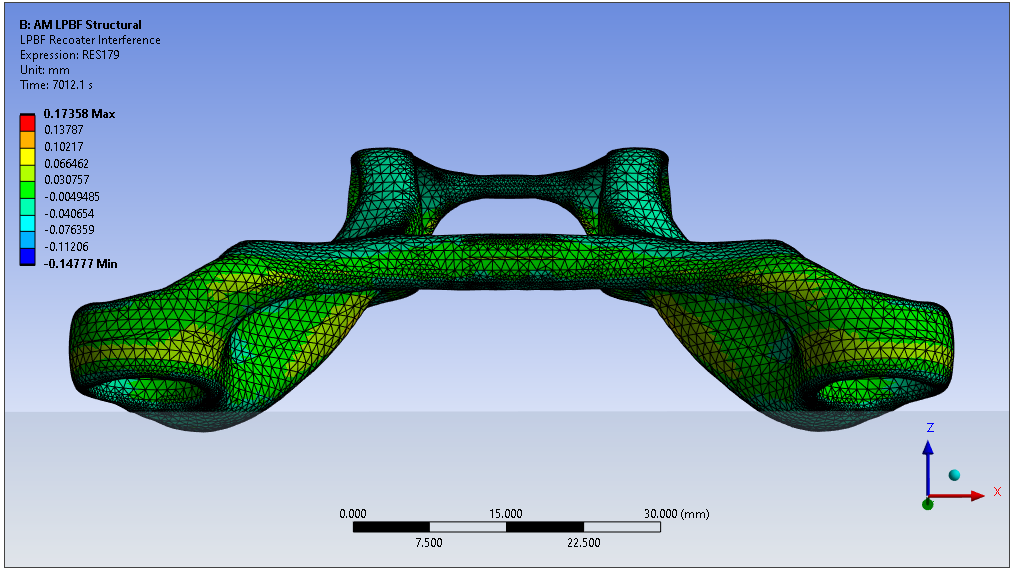

  2. Under Static Structural > Solution, click LPBF Recoater Interference to view recoater interference results.

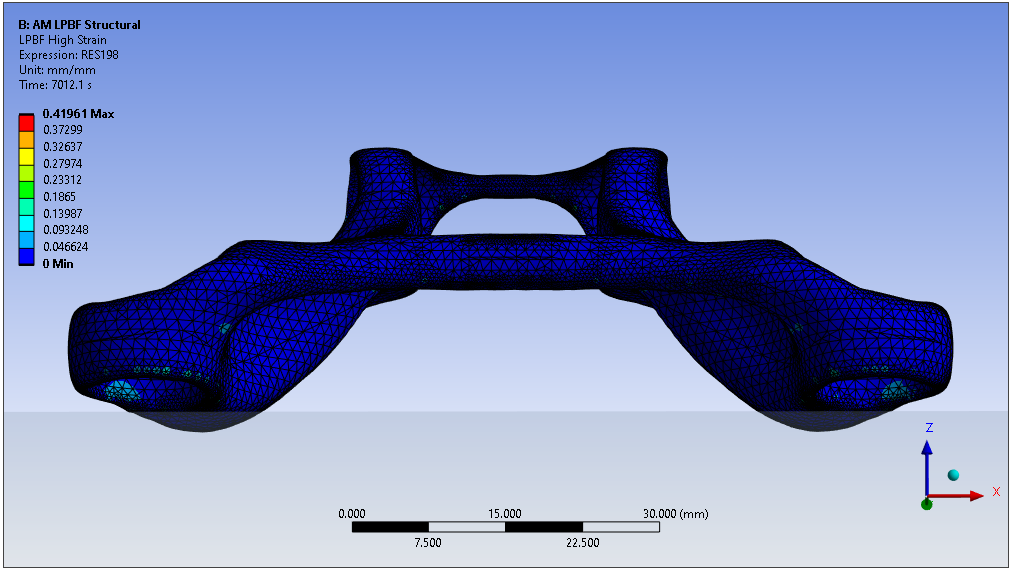

  3. Under Static Structural > Solution, click LPBF High Strain to view the high strain results.

Congratulations! You have completed the tutorial.
