The formulation of an expression output requires a basic understanding of The ACP Python Scripting User Interface.

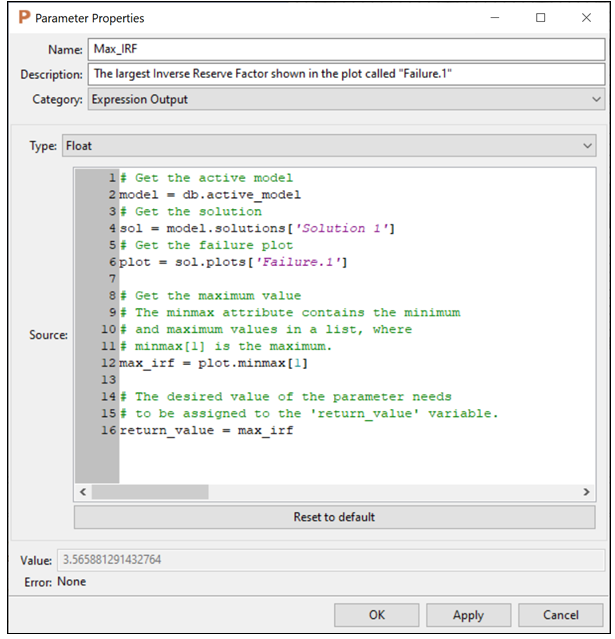

The Parameter Properties dialog displays a Source field that accepts Python code. Various information stored in the ACP database can be accessed. It is possible to enter a script and perform most of the operations available within ACP's Shell View.
The script's result can be returned by assigning a value to
the global return_value
variable.
Example 2.6: Simple Expression Output
An example of a simple expression output is shown here. In it, the maximum inverse reserve factor is retrieved from the active contour plot.
Example 2.7: Complex Expression Output of Maximum Thickness in the Kiteboard Model
# Get active model model = db.active_model # Create new selection of all elements attached to a specific ply modeling_ply = model.modeling_groups['Core'].plies['mp_4'] model.select_elements(selection='sel0',op='new',attached_to=[modeling_ply]) # Get total thickness of the first entity of selection sel0 thicknesses = list(model.mesh_query(name='thickness',position='centroid',selection='sel0', entities=[modeling_ply])[0]) # Get maximum thickness max_thickness = max(thicknesses) # Pass the found maximum thickness as the script's result. return_value = max_thickness
