Rectangular Pipe

Rectangular pipes are defined by 9 parameters:

Parameter #	Description	Face Name	Face #
1	The X half width of the open front face.	All Faces	0
2	The Y half width of the open front face.	All Faces	0
3	The Z length of the pipe along the local Z axis.	All Faces	0
4	The X half width of the open rear face.	All Faces	0
5	The Y half width of the open rear face.	All Faces	0
6-7	The X, Y angle tilt in degrees of the front face.	All Faces	0
8-9	The X, Y angle tilt in degrees of the rear face.	All Faces	0

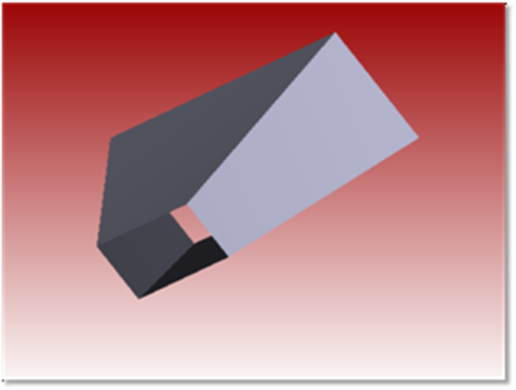

Rectangular pipes are 4 sided boxes. The front and rear faces are open. This object is typically used as a rectangular light pipe. The reference point is the center of the front open face. Face Numbers: All faces Face 0.

Also, see " Comment about tilted faces " in the Rectangular Volume object.
