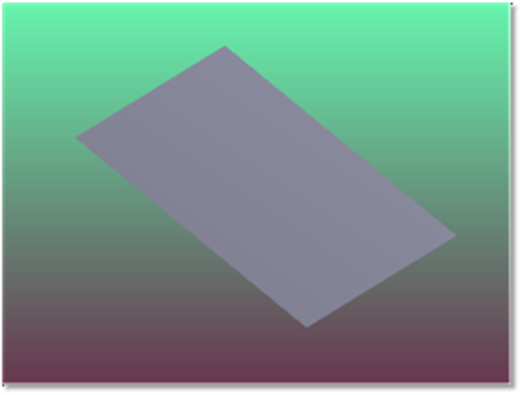

Rectangle

A rectangle is a flat surface defined by 2 parameters:

Parameter #	Description	Face Name	Face #
1	The X half width.	All Faces	0
2	The Y half width.	All Faces	0

Rectangles are flat and reside entirely within the local XY plane and are placed at the local Z = 0 coordinate.

The reference point is the center of the rectangle. Face Numbers: All faces Face 0.
