Alignment Check

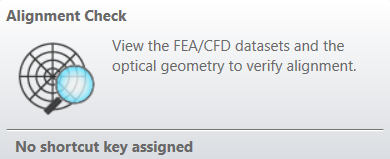

The Alignment Check tool displays the entire optical system with the loaded FEA/CFD datasets. This allows for an overall view of the alignment of FEA/CFD data in a single window.

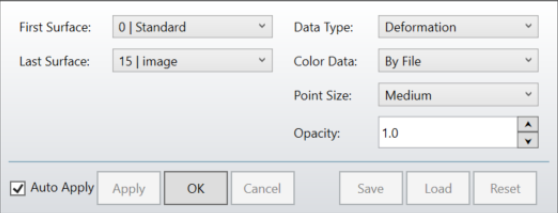

First Surface Select the first surface to view.

Last Surface Select the last surface to view.

Data Type Select FEA/CFD data type to visualize.

  • Deformation: Displays the surface deformation files and shows them on-top-of the optical surfaces.

  • Temperature: Displays the temperature data files and shows points on-top-of and in-between the optical surfaces.

  • Direct Index: Displays the direct index data files and shows points on-top-of and in-between the optical surfaces.

Color Data Change the color scheme of the FEA/CFD datasets

  • By File: Points associated to each dataset are a different color.

  • Same color: All points are the same color.

Point Size Adjust the size of the FEA/CFD data points.

Opacity Adjust the opacity of the surface or lens.
