Thermal Capacitance Data

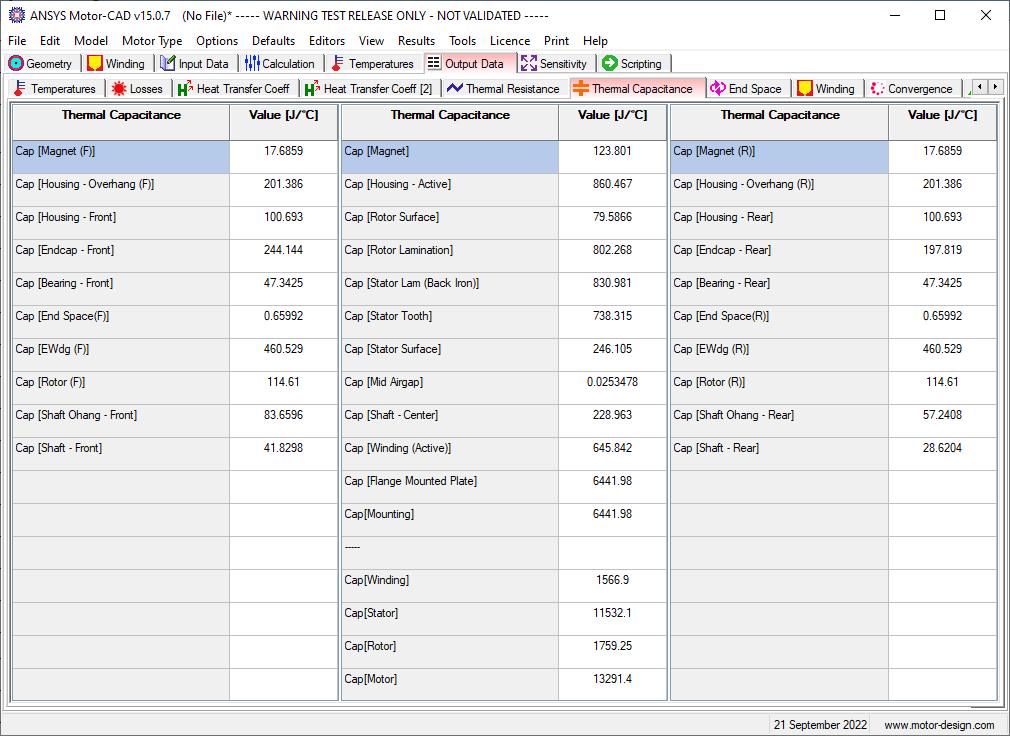

Set of 3 Grids showing numerical Output Data for the thermal capacitance parameters.

Used in the Thermal Transient calculation.

Cap [Ambient] Thermal capacity of Ambient node.

Cap [Housing - Active] Thermal capacity of housing node.

Cap [Housing - Overhang (F)] Thermal capacity of housing overhang [front] node.

Cap [Housing - Front] Thermal capacity of housing front node.

Cap [Endcap - Front] Thermal capacity of endcap [front] node.

Cap [Flange Mounted Plate] Thermal capacity of flange mounted plate node.

Cap [Housing - Overhang (R)] Thermal capacity of housing overhang [rear] node.

Cap [Housing - Rear] Thermal capacity of housing rear node.

Cap [Endcap - Rear] Thermal capacity of endcap [rear] node.

Cap [Stator Lamination (back iron)]Thermal capacity of stator lamination (back iron) schematic node.

Cap [Stator Lamination (tooth)] Thermal capacity of stator lamination (tooth) schematic node.

Cap [Stator Bore] Thermal capacity of stator bore schematic node.

Cap [Rotor Surface] Thermal capacity of rotor surface schematic node.

Cap [Magnet Inner Surface] Thermal capacity of magnet inner surface schematic node.

Cap [Rotor Lamination] Thermal capacity of rotor lamination schematic node.

Cap [Shaft - Centre] Thermal capacity of shaft centre schematic node.

Cap [Shaft - Front] Thermal capacity of shaft front schematic node.

Cap [Shaft - Rear] Thermal capacity of shaft rear schematic node.

Cap [Shaft Ohang - Front] Thermal capacity of shaft overhang (front) schematic node.

Cap [Shaft Ohang - Rear] Thermal capacity of shaft overhang (rear) schematic node.

Cap [Mid Airgap] Thermal capacity of airgap schematic node.

Cap [End Space (F)] Thermal capacity of internal end-space (front) schematic node.

Cap [End Space (R)] Thermal capacity of internal end-space (rear) schematic node.

Cap [Rotor Cage] Thermal capacity of rotor cage schematic node.

Cap [Encoder] Thermal capacity of encoder schematic node.

Cap [Encoder Case] Thermal capacity of encoder housing schematic node.

Cap [Foot Mounted Base] Thermal capacity of foot mounted base schematic node.

Cap [Winding Outer Surface] Thermal capacity of winding outer layer schematic node.

Cap [Winding] Thermal capacity of total winding volume. Used in Tc [Winding] calculation.

Cap [Stator] Thermal capacity of total stator volume. Used in Tc [Stator] calculation.

Cap [Motor] Thermal capacity of total motor volume. Used in Tc [Motor] calculation.

See also Units.
