End Ring Geometry
|
EndRing Add [Outer F] |
Amount by which induction motor end ring extends outwards beyond slot opening radius at front of machine. |
|

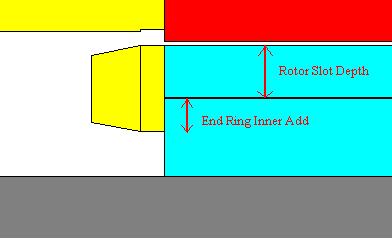

EndRing Add [Inner F] |
Amount by which induction motor end ring extends inwards beyond slot bottom radius at front of machine. |
|
EndRing Add [Outer R] |
Amount by which induction motor end ring extends outwards beyond slot opening radius at rear of machine. |
|
EndRing Add [Inner R] |
Amount by which induction motor end ring extends inwards beyond slot bottom radius at rear of machine. |
|
EndRing Thickness [F] |
Thickness of the endring at the front of the machine. |
|
EndRing Thickness [R] |
Thickness of the endring at the rear of the machine. |
|
EndRing Extension [F] |
Extension of the rotor bar from the rotor lamination at the front of the machine. |
|
EndRing Extension [R] |
Extension of the rotor bar from the rotor lamination at the rear of the machine. |
See Axial Cross-Section Editor.
See also Wafter Geometry.
