Impedance Scan Results Menu Options

Navigate to the Impedance Scan results menu:

1. Click Results.
2. From the SIwave area, select Impedance Scan > [Simulation Name].



Menu options include:

• View Profile – opens the simulation profile.
• View Simulation Properties – opens the Simulation Properties window on the SI/PI tab.
• Rename Solution – allows you to rename the solution.
• Delete Solution – deletes the solution.

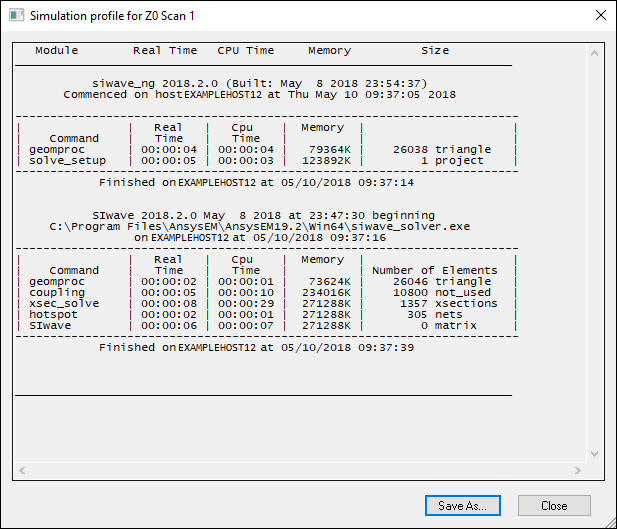

Simulation Profile:

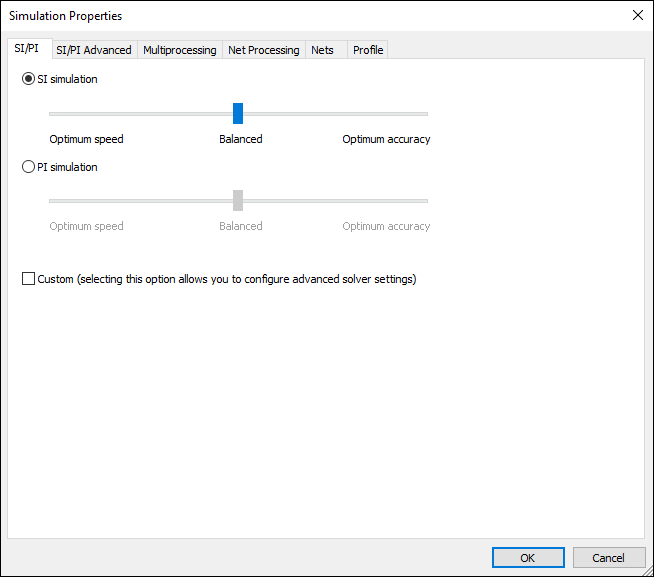

Simulation Properties:

From the Impedance Scan Results menu, you can also view Impedance Scan results and export the Impedance Scan.
